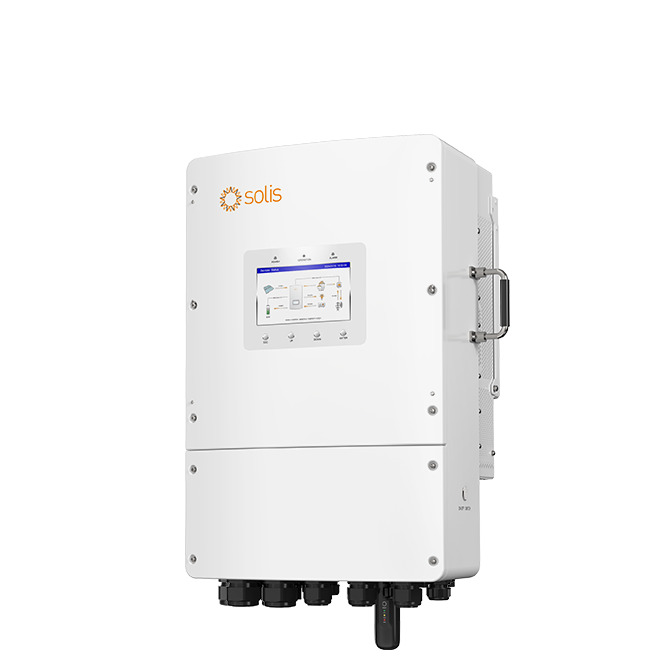

Solis S6-EH3P12K02-NV-YD-L (12 kW, three-phase low-voltage hybrid)
Solis P&P0108Solis S6 12kW 3Ph AC Coupled Inverter, for Low Voltage Batteries Potencia inversor: 12kWn
| Power (Wn): 12 K |
| singlephase/threephase: Trifásico |
| Function: Híbrido con backup |
| MPPT voltage range (V): 200-850 |
| Inverter / solar panel / Battery: Inversor |
| Marca: Solis |
| warranty: 5 años |
| Número de strings FV: 2 |
Technical guide
Compatibility and configuration
Official data for Solis S6-EH3P12K02-NV-YD-L: three-phase low-voltage hybrid inverter
PV input
19.2 kW · 1,000 V
MPPT
2 / 4
Current
40 A / 40 A
Battery
40-60 V · Li-ion / lead-acid
Charge / discharge
250 A
AC output
12 kW · 380/400 V
Backup
200% for 10 s · <10 ms
Dimensions
430 × 660 × 305 mm
Weight
42 kg
Technical frequently asked questions
What is its function?
It converts and manages energy according to the documented architecture.
Which system is it compatible with?
Combine it only with expressly compatible grid, battery and accessories.
What must be checked before installation?
Check voltages, currents, protection, wiring and firmware.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
