For homes and small professional projects.

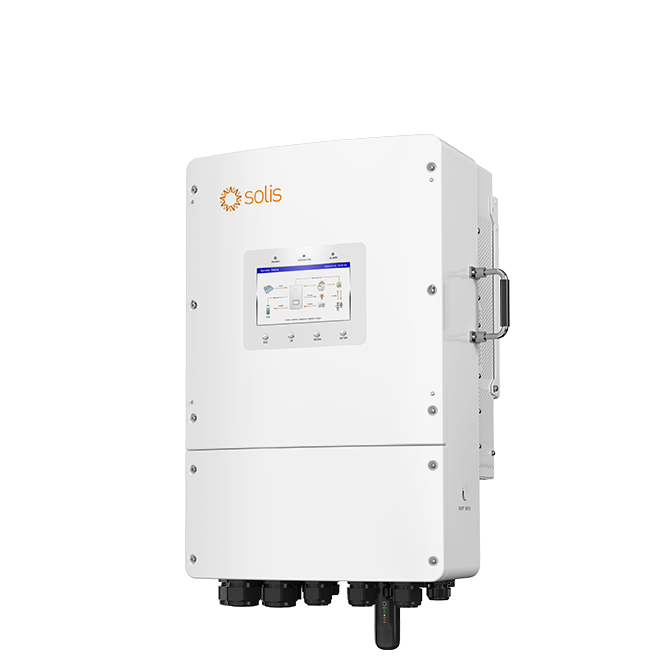

Solis S6-EH3P10K02-NV-YD-L (10 kW, three-phase low-voltage hybrid)
Solis P&P0106Solis S6 10kW 3Ph AC Coupled Inverter, for Low Voltage Batteries Potencia inversor: 10kWn
| Power (Wn): 10 K |
| singlephase/threephase: Trifásico |
| Function: Híbrido con backup |
| MPPT voltage range (V): 200-850 |
| Inverter / solar panel / Battery: Inversor |
| Marca: Solis |
| warranty: 5 años |
| Número de strings FV: 2 |
Technical guide
Compatibility and configuration
Key data for the Solis S6-EH3P10K02-NV-YD-L low-voltage three-phase hybrid inverter.
AC output
10 kW / 10 kVA · 380/400 V
PV input
16 kW usable · 1,000 V maximum · MPPT 200-850 V
MPPT and strings
2 MPPT / 3 strings · 20/40 A · Isc 30/50 A
Battery
Lithium or lead-acid · 40-60 V · up to 220 A
Backup
10 kW · 200% for 10 s · <10 ms switchover
Generator input
10 kW · 15.2 A · 380/400 V
Efficiency
97.6% maximum · 97.0% EU
Protection and control
IP66 · 7-inch LCD and Bluetooth · CAN, RS485 and Ethernet
Weight
42 kg
Technical frequently asked questions
Which battery type does it use?
It supports 40-60 V lithium or lead-acid batteries and up to 220 A on the 10 kW version; validate the exact BMS.
Does it support unbalanced loads?
Yes. The documentation states support for unbalanced and half-wave loads on both grid and backup ports.
Can it operate with a generator?
Yes. The 10 kW version supports a 10 kW generator input at 380/400 V, subject to the manual and required protection.
Official sources published on this product page: data sheet · installation manual. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
