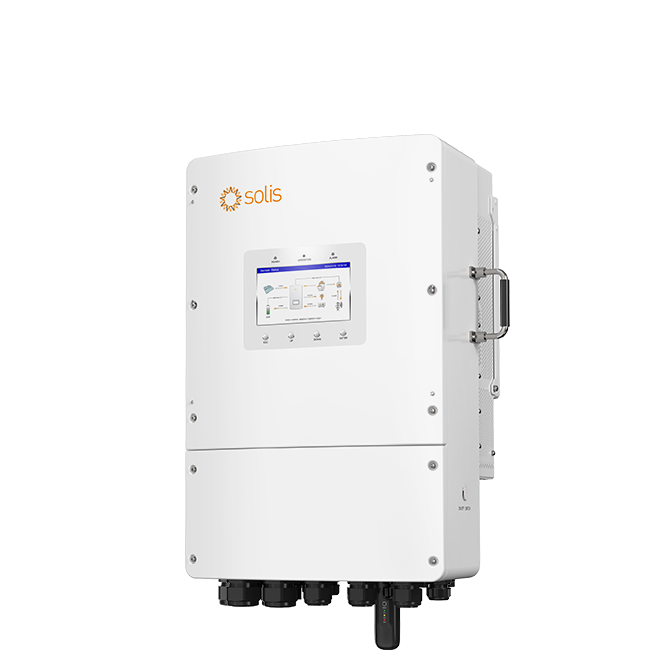

Solis S6-EH3P8K02-NV-YD-L (8 kW, three-phase low-voltage hybrid)
Solis P&P0100S6 8kW 3Ph Hybrid Inverter, 2 MPPT, DC SW, for LV Batteries, S2-WL-ST in box, Display Version, Meter Version, Parallel up to 6
| Power (Wn): 8 K |
| singlephase/threephase: Trifásico |
| Function: Híbrido con backup |
| MPPT voltage range (V): 200-850 |
| Inverter / solar panel / Battery: Inversor |
| Marca: Solis |
| warranty: 5 años |
| Número de strings FV: 2 |
Technical guide
Compatibility and configuration
Official data for Solis S6-EH3P8K02-NV-YD-L: three-phase low-voltage hybrid inverter
PV input
12.8 kW · 1,000 V
MPPT
2 / 3
Current
20 A / 40 A
Battery
40-60 V · Li-ion / lead-acid
Charge / discharge
180 A
AC output
8 kW · 380/400 V
Backup
200% for 10 s · <10 ms
Dimensions
430 × 660 × 305 mm
Weight
42 kg
Technical frequently asked questions
What is its function?
It converts and manages energy according to the documented architecture.
Which system is it compatible with?
Combine it only with expressly compatible grid, battery and accessories.
What must be checked before installation?
Check voltages, currents, protection, wiring and firmware.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
