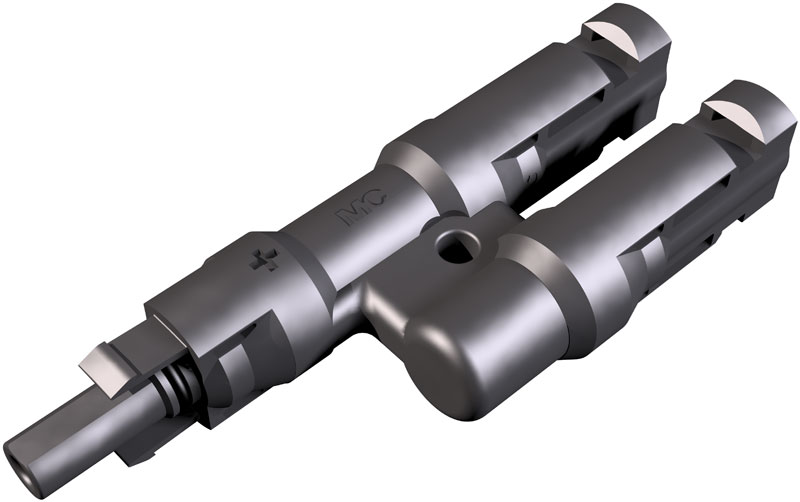

MC PV-AZS4 MALE double connector (positive pole)
P&P0054MC casquillo de derivar MC4 (polo negativo). Para una sencilla conexión en paralelo simple o serie-paralelo de módulos fotovoltaicos.
Documents
Compatibility and configuration
Official data for MC PV-AZS4: MC4 branch connector for parallel PV connection
Reference
PV-AZS4
Type
Male branch plug
Manufacturer order
32.0019
System
MC4 · Ø4 mm
Voltage
1.000 Vcc
Current
30 A
Protection
IP67 mated · IP2X unmated
Temperature
-40 to +90 °C · limit +105 °C
Contact
MULTILAM · tinned copper
Technical frequently asked questions
What is its function?
It provides a safe branch in series-parallel PV connections.
Which system is it compatible with?
It mates with compatible single-pole MC4 couplers.
What must be checked before installation?
Check polarity, current, sealing and caps on unused connections.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. The source does not publish an unambiguous total weight for this item, so structured weight is omitted.
