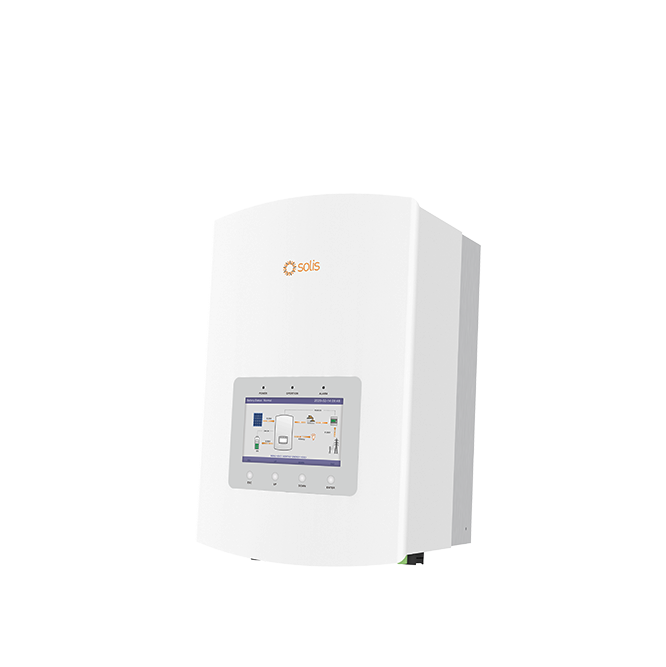

Solis S5-EH1P6K-L (6 kW, single-phase hybrid, single-phase meter included)

Solis Híbrido S5-EH1P6K-L Inversor monofásico híbrido de 2 MPPT Voltaje máximo de entrada: 600 V Corriente máxima de entrada:15 A / 15 A Eficiencia máxima: 97.1% Protección contra polaridad inversa DC / sobrercorriente de salida / cortocircuito y sobretensión Nivel de protección: IP65 Garantía de 5 años ampliable hasta 20 años Potencia inversor: 6kWn

Power (Wn)
singlephase/threephase
Function
Inverter / solar panel / Battery
Marca
Número de strings FV

This combination does not exist.

Power (Wn): 6 K

singlephase/threephase: Monofásica

Function: Híbrido con backup

Inverter / solar panel / Battery: Inversor

Marca: Solis

Número de strings FV: 2

Documents

Ficha de datos S5-EH1P(3-6)K-L_ESP_V1.1_2023_02.pdf

Ficha tecnicaS5-EH1P(3-6)K-L_ESP_V1,3.pdf

Solis_datasheet_S5-EH1P(3-6)K-L.pdf

Solis_Manual_RHI(3-6)K_S5_EUR_ESP_V1.2(20221130).pdf

Certificado RD1699.pdf

Technical guide

Compatibility and configuration

Key data for the Solis S5-EH1P6K-L low-voltage single-phase hybrid inverter.

Grid output

6 kW nominal · 6.6 kVA maximum

PV input

Up to 8 kW recommended · 600 V maximum · MPPT 90-520 V

MPPT and current

2 MPPT / 2 strings · 15 A · Isc 22.5 A per input

Battery

Lithium or lead-acid · 42-58 V · 50-2,000 Ah

Charge and discharge

5 kW maximum · 100 A

Backup

5 kW nominal · 7 kVA for 10 s · <20 ms

Efficiency

>97.1% maximum · >96.5% EU

Protection and communication

IP65 · RS485 · optional Wi-Fi/GPRS

Weight

18.3 kg

Technical frequently asked questions

Which batteries are supported?

It supports 42-58 V lithium or lead-acid batteries; check the linked compatible BMS list.

Does the backup output deliver 6 kW?

Not nominally: the data sheet states 5 kW backup and 7 kVA for 10 seconds for this family.

How is the PV input sized?

Respect the 600 V maximum, 90-520 V MPPT range, 15 A and 22.5 A Isc per input, plus project temperatures.

Official sources published on this product page: data sheet · battery compatibility · installation manual. Specifications are subject to the conditions in the linked documents.

AC-side storage option

Add Atmoce storage without replacing this inverter

In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.

ResidentialAtmoce MS-7K-U · 7 kWh

For homes and small professional projects.

Commercial and industrialAtmoce MS-16K-U · 16 kWh

For C&I projects that require a higher-capacity solution.

Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.

Check compatibility with Atmoce See how AC retrofit works
