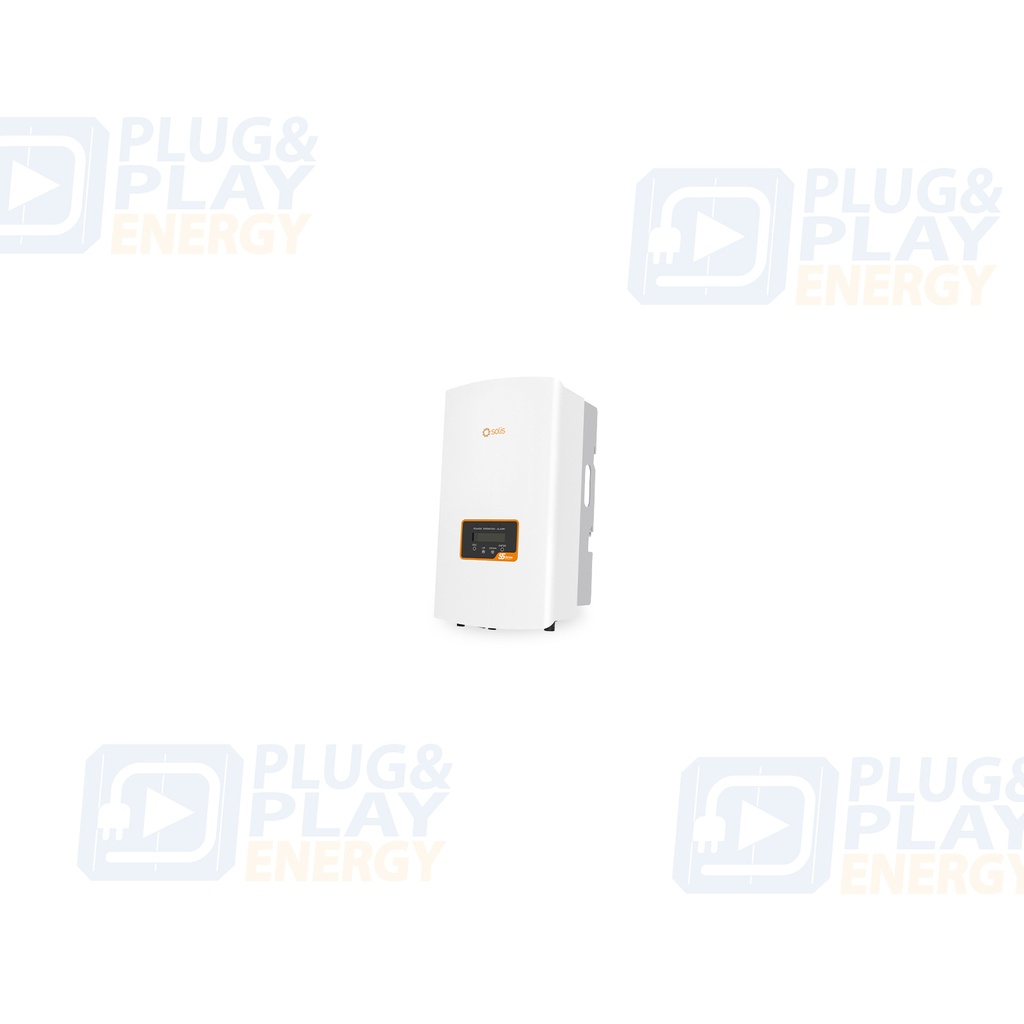

Solis S5-GR3P5K (5 kW, three-phase grid-tied, 021903230016)
Solis P&P0034S5 5kW 3Ph Inverter, 2 MPPT, DC SW
| Power (Wn): 5 K |
| singlephase/threephase: Trifásico |
| MPPT maximal current (A): 16 |
| Inverter / solar panel / Battery: Inversor |
| starting voltage(V): 180 |
| Marca: Solis |
| Número de strings FV: 2 |
Technical guide
Compatibility and configuration
Official data for Solis S5-GR3P5K: three-phase grid-tied PV inverter
PV input
7,5 kW · 1.100 V
MPPT
2 · 2 strings
Current
16 A / 16 A
AC output
5 kW / 5.5 kVA · 7.9 A
Grid
220/380 V · 230/400 V
Efficiency
98.5% maximum
Protection
IP66
Dimensions
310 × 563 × 219 mm
Weight
17.8 kg
Technical frequently asked questions
What is its function?
It converts and manages energy according to the documented architecture.
Which system is it compatible with?
Combine it only with expressly compatible grid, battery and accessories.
What must be checked before installation?
Check voltages, currents, protection, wiring and firmware.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
