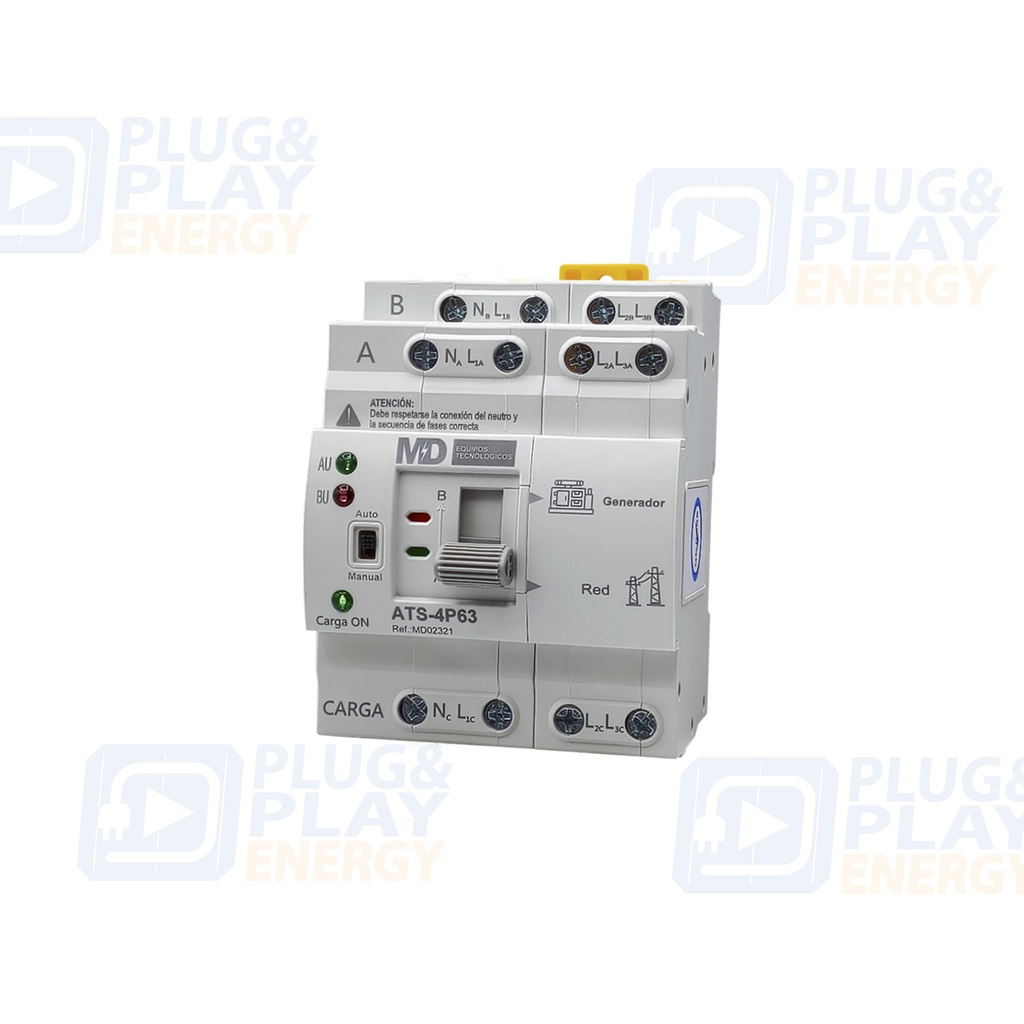

ATS-4P63 - CONMUTADOR DE TRANSFERENCIA AUTOMÁTICA (ATS), 4P, 63A
P&P4609ATS-4P63 - CONMUTADOR DE TRANSFERENCIA AUTOMÁTICA (ATS), 4P, 63A
Technical guide
Compatibility and configuration
Official data for ATS-4P63: four-pole 63 A automatic transfer switch
Type
ATS clase PC · AC-31B
Poles
4
Current
63 A
Voltage
110 / 220 / 400 Vca · Ui 690 V
Transfer time
<50 ms
Short circuit
5 kA
Endurance
>8,000 mechanical · >1,500 electrical
Dimensions
108 × 82 × 78 mm
Weight
0.6 kg
Technical frequently asked questions
What is its function?
It automatically transfers a load between grid and backup.
Which system is it compatible with?
Install it between two compatible three-phase AC sources and the load.
What must be checked before installation?
Observe neutral, phase sequence, inverter power and protection.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
