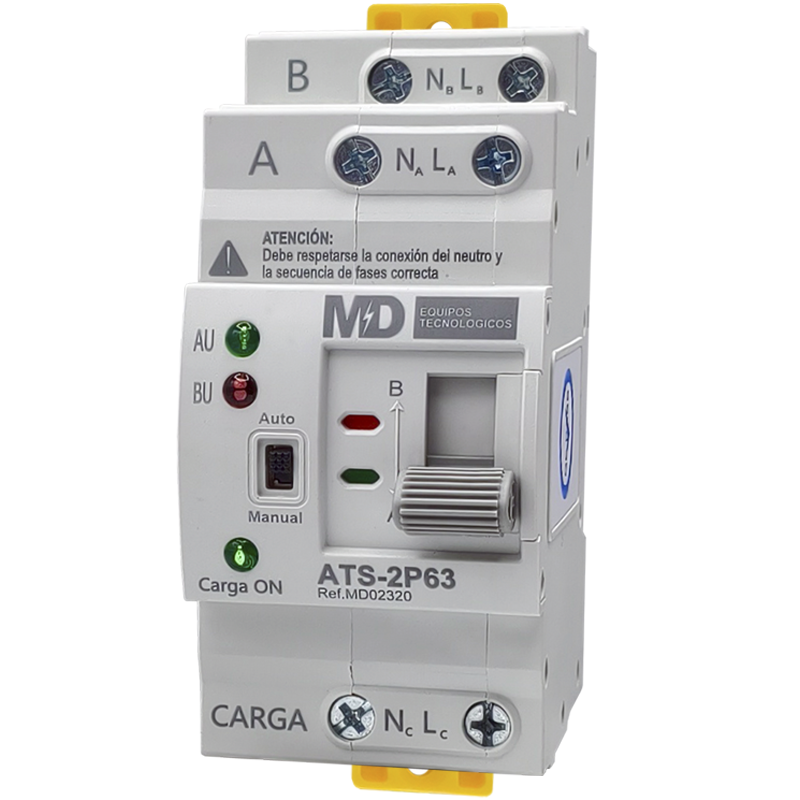

ATS-2P63 - CONMUTADOR DE TRANSFERENCIA AUTOMÁTICA (ATS), 2P, 63A
P&P4535ATS-2P63 - CONMUTADOR DE TRANSFERENCIA AUTOMÁTICA (ATS), 2P, 63A
Technical guide
Compatibility and configuration
Official data for ATS-2P63: two-pole 63 A automatic transfer switch
Type
PC-class ATS · AC-31B
Poles
2
Current
63 A
Voltage
110 / 220 / 400 Vca · Ui 690 V
Transfer time
<50 ms
Short circuit
5 kA
Endurance
>8,000 mechanical · >1,500 electrical
Dimensions
108 × 51 × 78 mm
Weight
0.5 kg
Technical frequently asked questions
What is its function?
It automatically transfers the load between grid and backup.
Which system is it compatible with?
Install it between two compatible AC sources and the load.
What must be checked before installation?
Observe neutral, sequence, minimum inverter power and protection.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
