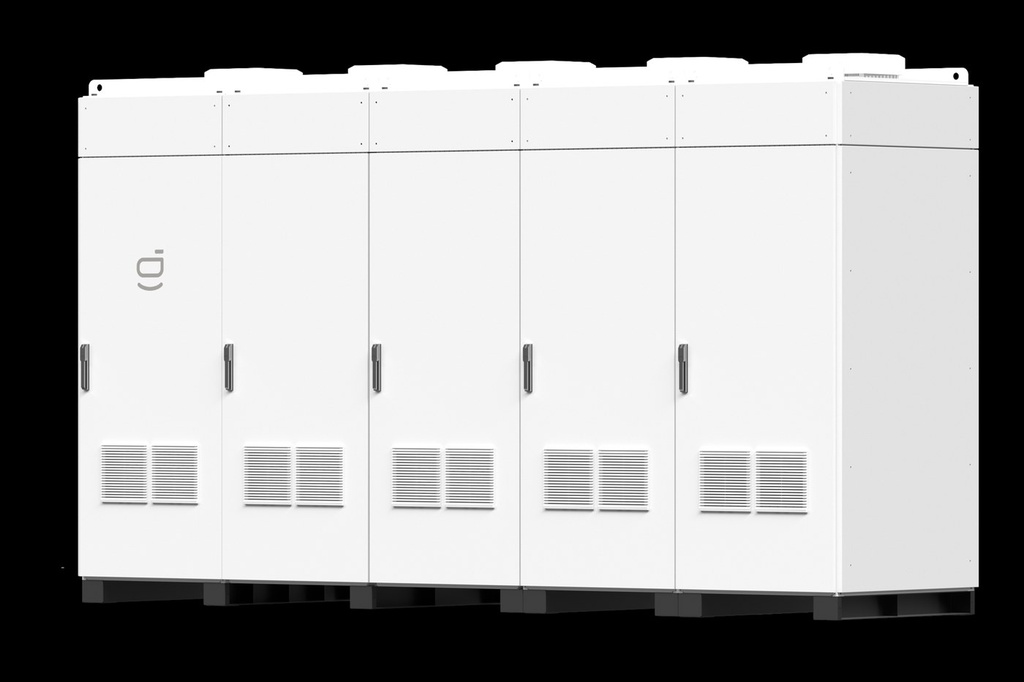

Sigenergy Sigen Gateway B-INV-15 (connection up to 15 inverters) (11110063)
Sigenergy P&P4475Sigen Energy Gateway HYB-15 Inverter Connection Cabinet
| Marca: Sigenergy |
| warranty: 2 años |
Technical guide
Compatibility and configuration
Official data for Sigen Gateway B-INV-15: connection cabinet for up to 15 Sigen C&I inverters
Type
Inverter cabinet
Ports
15
Voltage
380-400 Vca
Current
200 A maximum per connection
Power
125 kW maximum per connection
Dimensions
800 × 2.200 × 1.000 mm
Protection
IP20
Communication
Fast Ethernet · RS485 · dry contact
Weight
600 kg
Technical frequently asked questions
What is its function?
It combines connections for up to fifteen inverters within the B-series architecture.
Which system is it compatible with?
Deploy it only with matching-series B-series cabinets.
What must be checked before installation?
Check series, inverter count, current, power and wiring.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
