For homes and small professional projects.

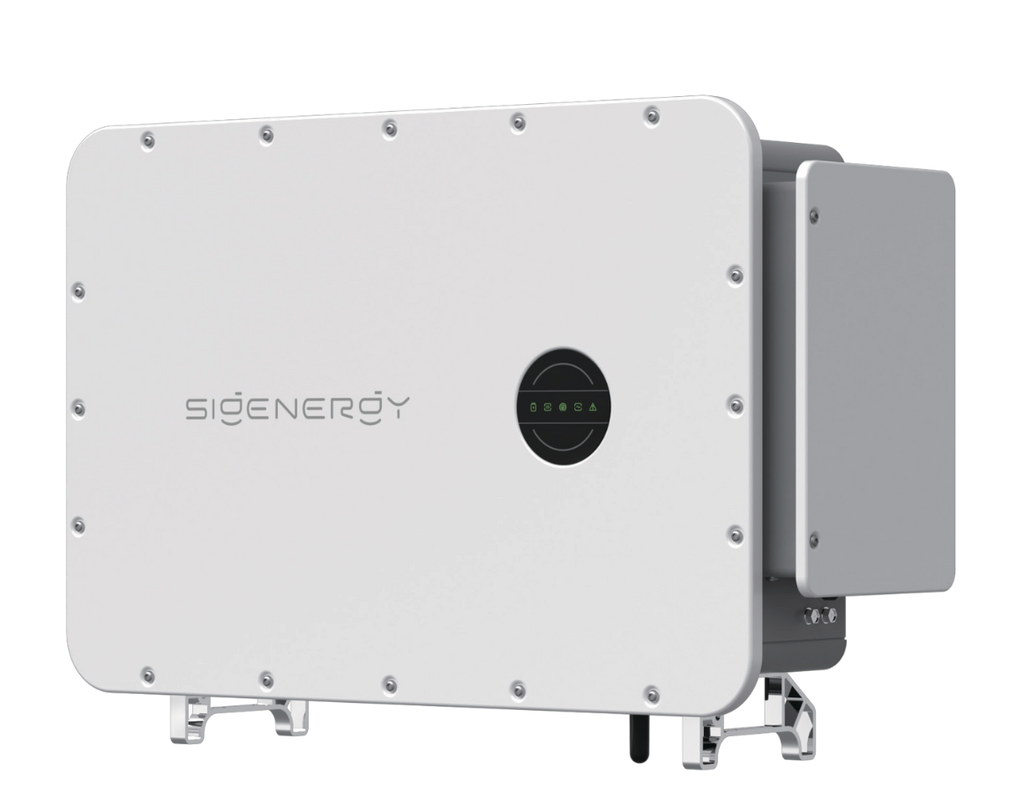

Sigenergy Sigen PV Inverter 80M1-HYA (80kWn) (11010133)
Sigenergy P&P3879• Potencia nominal de salida en CA: 80 kW (400 V, 50 Hz) • Número de MPPT: 6 entradas independientes (2 cadenas por MPPT) • Rango de voltaje de entrada en MPPT: 160–1000 V • Eficiencia máxima: 98,6%
| Power (Wn): 80 K |
| singlephase/threephase: Trifásico |
| Function: Híbrido |
| Inverter / solar panel / Battery: Inversor |
| Marca: Sigenergy |
Technical guide
Compatibility and configuration
Official data for Sigen PV 80M1-HYA: battery-ready C&I hybrid inverter
AC output
80 kW · 88 kVA maximum
PV input
160 kWp · 1,100 V maximum
MPPT
6 · 2 strings/MPPT · 40 A/MPPT
Battery
SigenStack BAT 12 · 4-21 modules
Battery power
88 kW charge/discharge · 180 A
Protection
IP66 · AFCI · Type II DC/AC SPD
Communication
WLAN · Fast Ethernet · RS485 · CommMod
Dimensions
918 × 640 × 340 mm
Weight
75 kg
Technical frequently asked questions
What is its function?
It converts and manages energy according to the documented architecture.
Which system is it compatible with?
Combine it only with expressly compatible grid, battery and accessories.
What must be checked before installation?
Check voltages, currents, MPPT, protection, wiring and firmware.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
