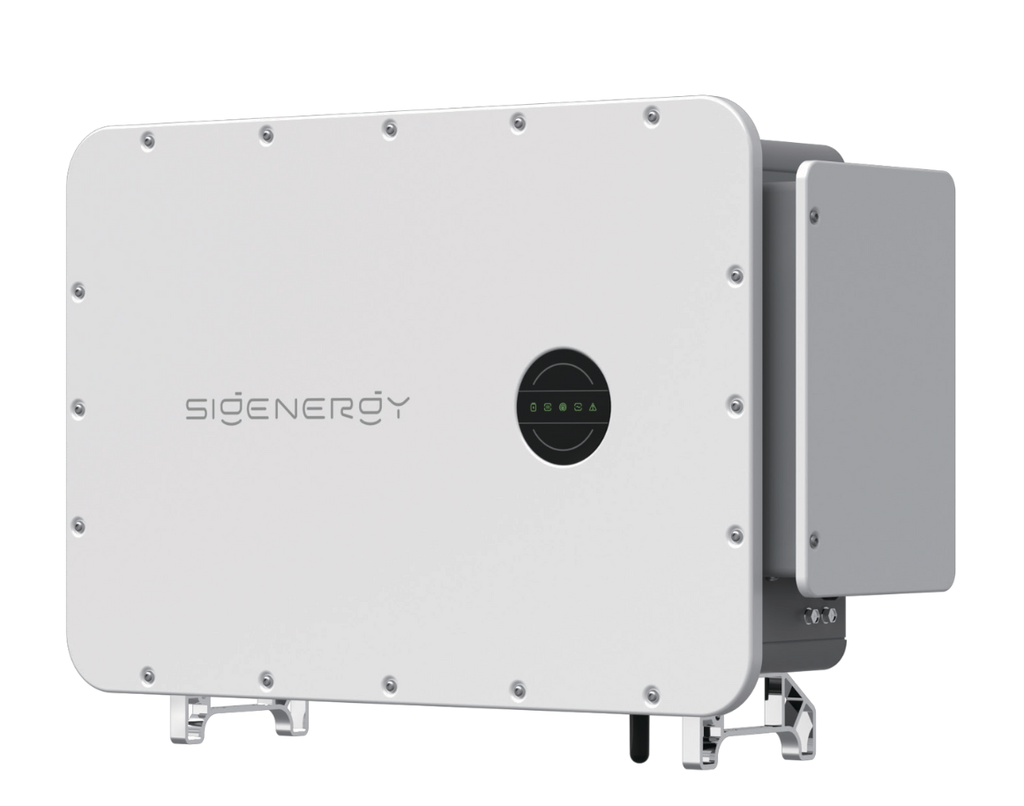

Sigenergy Sigen PV Inverter 100M1 (100kWn - Non-Hybrid) (11010071)

Sigenergy Sigen PV Inverter 100M1 (100kWn - Non-Hybrid) (11010071)

https://pnp.energy/web/image/product.template/5645/image_1920?unique=089ce2f Sigenergy P&P3564

Sigen PV Inverter Modelos: 50M1, 60M1, 80M1, 100M1, 110M1 Entrada de CC Energía fotovoltaica máx. CC: 90,000 - 198,000 Wp Tensión máx. de entrada de CC: 1,100 V Número de MPPT: 4 - 8 (dependiendo del modelo) Protección Función de Protección de Seguridad: Incluye interruptor de circuito de falla de arco, protección contra polaridad inversa en CC, monitorización de corriente residual, protección contra sobretensiones en CC/CA tipo II, protección contra isla, monitorización de aislamiento, y protección contra sobrecorriente/sobretensión/cortocircuito en CA. Datos generales Medidas (ancho × alto × prof.): 918 / 640 / 340 mm Peso: 68 - 75 kg Rango de temperatura de funcionamiento: -30 ~ 60 °C Grado de protección IP: IP66 Comunicación: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

Not Available For Sale

  • Power (Wn)
  • singlephase/threephase
  • Nº of MPPTs
  • MPPT voltage range (V)
  • MPPT maximal current (A)
  • Inverter / solar panel / Battery
  • Marca
  • Número de strings FV

This combination does not exist.

Contact Us
Power (Wn): 100 K
singlephase/threephase: Trifásico
Nº of MPPTs: 4
MPPT voltage range (V): 160-1000
MPPT maximal current (A): 32
Inverter / solar panel / Battery: Inversor
Marca: Sigenergy
Número de strings FV: 10
Technical guide

Compatibility and configuration

Official data for Sigen PV 100M1: 100 kW three-phase C&I PV inverter

AC output

100 kW · 110 kVA max.

PV input

200 kWp · 1.100 V

MPPT

8 · 2 strings/MPPT

MPPT current

40 A · Isc 60 A

Grid

380/400 V · 3W+(N)+PE

Protection

IP66 · AFCI · SPD CC/CA Tipo II

Communication

WLAN · Fast Ethernet · RS485 · CommMod

Dimensions

918 × 640 × 340 mm

Weight

72 kg

Technical frequently asked questions

What is its function?

It converts and manages energy according to the documented architecture.

Which system is it compatible with?

Combine it only with expressly compatible grid, battery and accessories.

What must be checked before installation?

Check voltages, currents, MPPT, protection, wiring and firmware.

Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.

AC-side storage option

Add Atmoce storage without replacing this inverter

In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.

ResidentialAtmoce MS-7K-U · 7 kWh

For homes and small professional projects.

Commercial and industrialAtmoce MS-16K-U · 16 kWh

For C&I projects that require a higher-capacity solution.

Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
