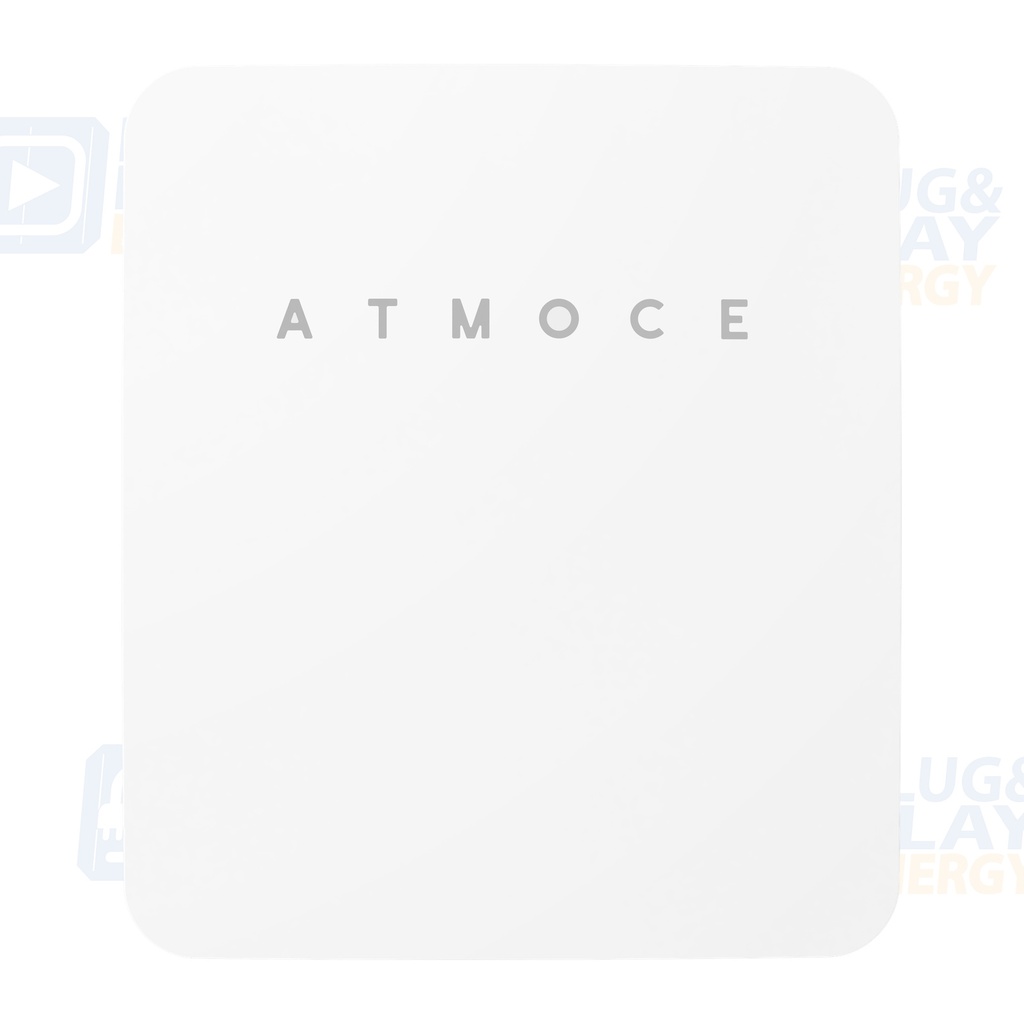

Atmoce MU100-S (Single-phase Backup) (81051002)
Atmoce P&P4332Backup - for 1 phase system
| singlephase/threephase: Monofásica |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Key data for the Atmoce MU100-S for single-phase backup within the Atmoce architecture.
Grid setup
Single-phase · 220/230/240 V · 50/60 Hz
Voltage range
184-276 V line to neutral
Maximum current
80 A at combiner, grid and distribution panel
Protection devices
80 A breakers for combiner, grid and bypass
Communication
CAN and digital outputs

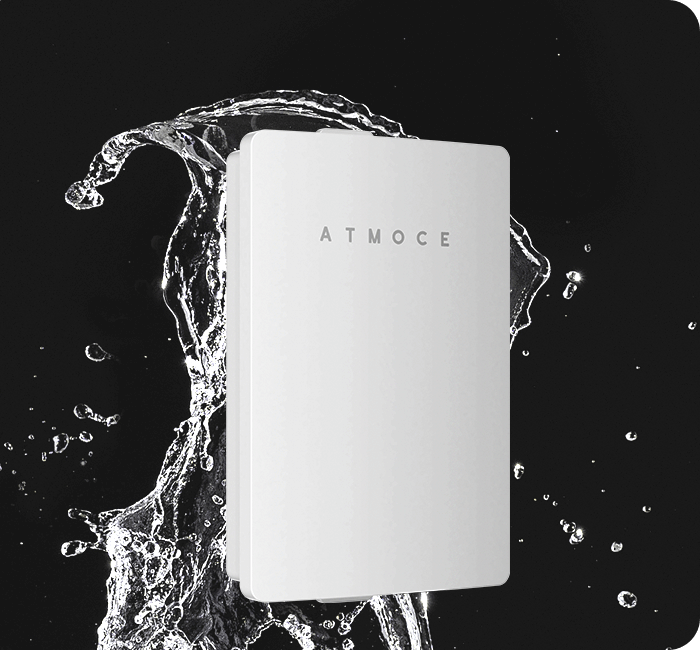

Environmental protection
Outdoor IP65 · -30 to 50 °C
Cooling and noise
Natural convection · below 25 dB
Electrical category
Overvoltage III · protection class II
Weight
3.6 kg
Technical frequently asked questions
Which system is it designed for?
It is the single-phase backup unit in the Atmoce architecture and must be integrated according to the MC100 + Backup guide.
What current does it support?
It supports up to 80 A on the combiner/load, grid and distribution-panel circuits.
Can it be installed outdoors?
The data sheet specifies an IP65 enclosure and operation from -30 to 50 °C; the manual conditions must be followed.
Official sources published on this product page: data sheet · installation manual. Specifications are subject to the conditions in the linked documents.
