Solis MINI 700W 4G Single MPPT DC

Potencia nominal de salida: 3 kW
Rango de voltaje MPPT: 80-500 V
Voltaje máxima de entrada: 600 V
Voltaje de arranque: 90 V
Corriente máxima de entrada: 12.5 A
Número de MPPTs/Número de entradas: 1/1

Características generales:
97.3% de eficiencia máxima
Tecnología de conmutación de alta frecuencia
Rango de voltaje ultra amplio, voltaje de arranque ultra bajo
Algoritmo preciso de MPPT
Administrador de energía de exportación integrado (EPM)
AFCI integrado (Protección de circuito de falla de arco CC)
Corriente máxima de entrada por cadena 12.5A
Compacto y ligero
Conexión amigable y adaptable a la red

Solis S6-GR1P3K-M-DC-Meter (3 kW - 1 MPPT)

1 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis 25kw 5G Three Phase TRIPLE MPPT DC

Solis 100kW 5G Three Phase TEN MPPT DC

Solis S6-GR1P0.7K-M (700 W)

1 MPPT non-hybrid single-phase inverter
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / overvoltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis-100K-5G-DC (10 MPPT)

Maximum input voltage: 1100V
Maximum input current: 10*26A
Maximum efficiency: 98.7%
DC reverse polarity/temperature/short circuit and surge protection
Incorporates type II surge protection in AC and DC
5-year warranty (extendable up to 20 years)

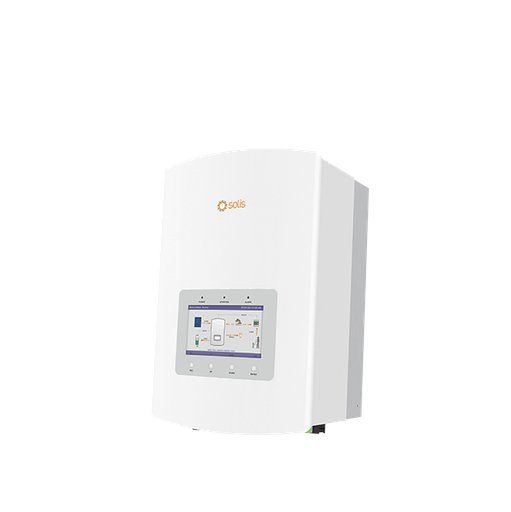

Solis Híbrido S5-EH1P5K-L (medidor incluido)

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

Solis S5-GR3P15K 15KW (2 MPPT)

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis S6-GR1P6K-DC-Meter (6 kW - 2 MPPT)

2 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis-S5-GC40K-DC (4 MPPT)

Three-phase grid connection inverter
Maximum input current: 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis-S5-GR3P10K (10 kW - 2 MPPT)

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis 3P20kW 4G Three Phase Dual MPPT DC

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

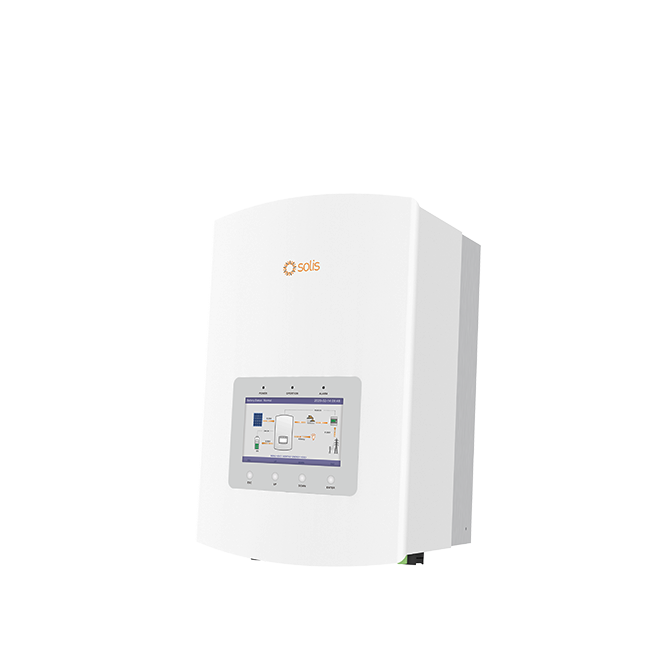

Solis Híbrido S5-EH1P6K-L

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 97.1%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

Solis-S5-3P12K-DC (12 kW - 2 MPPT)

1000V three-phase inverter
It has a maximum input current of 22A
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis S6 10kW 3Ph AC Coupled Inverter, for Low Voltage Batteries

Solis S6-GR1P4K-DC (4kW - 2MPPT)

2 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

2 MPPT single-phase hybrid inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP65
Warranty: 5 years extendable up to 20 years

Solis S5-GR1P1.5K-M (1,5 kW)

Maximum input voltage: 600 V
Maximum input current: 12.5 A
Number of MPPTs/Number of entries: 1/1
97.3% maximum efficiency
Integrated AFCI (DC Arc Fault Circuit Protection)
5 year warranty extendable to 20 years

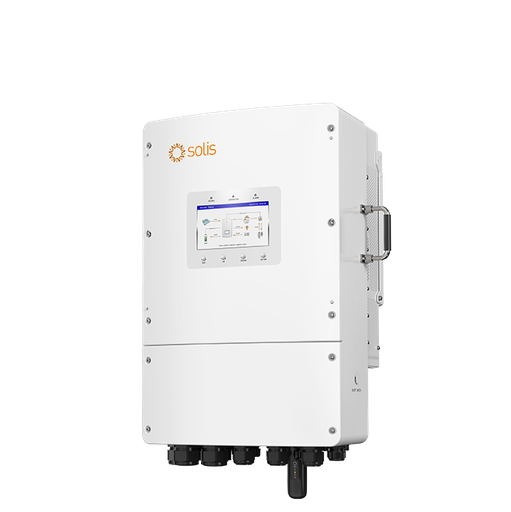

Solis Hybrid S6-EH3P8K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66
