• Three-phase power: 10 kW hybrid inverter for residential and commercial use
• Total integration: Combines solar, batteries, grid, and generator in one system
• Immediate backup: 0 ms instant switching for critical loads
• Robust design: Compact, quiet, and durable with IP66 outdoor protection

• Single-phase hybrid inverter 3 kW: 2 MPPT.
• Max. input voltage: 1100 V.
• Max. nominal input voltage: 600 V.
• Maximum efficiency: 98.4 %.
• Protection: IP66, dust- and water-resistant.

Sigen Gateway HomeMax TP (Three-phase) for 12 inverters

3 breaker positions reserved for SigenStor or other loads
0 ms switchover to backup mode, worry-free energy use
Ready for generator, heat pump, or other controllable loads
Supports whole-home and partial-home backup
350 ms reverse power flow protection from grid and generator
Uninterrupted power supply via PV+ESS/grid/generator

• Nominal AC output power: 110 kW (380/400 V, 50/60 Hz)
• Number of MPPTs: 8 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,3%

• 3 kW single-phase hybrid inverter: Perfect for medium-sized homes or off-grid systems
• Full integration: Compatible with solar panels, SigenStor batteries, and generators
• Automatic backup: Instant switching (0 ms) to backup mode for critical loads
• Robust design: Metal casing, fanless, silent operation (≤25 dB)

● Compact and silent design (25 dB)
● 2 MPPT with high efficiency and flexibility
● IP66 protection and wide thermal range
● Compatible with SigenStor batteries and smart integration

• Nominal AC output power: 125 kW (400 V, 50/60 Hz)
• Number of MPPTs: 8 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

• Nominal AC output power: 6 kW (380/400 V, 50/60 Hz)
• Number of MPPTs: 2 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.6%

• Nominal AC output power: 50 kW (400 V, 50 Hz)
• Number of MPPTs: 4 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

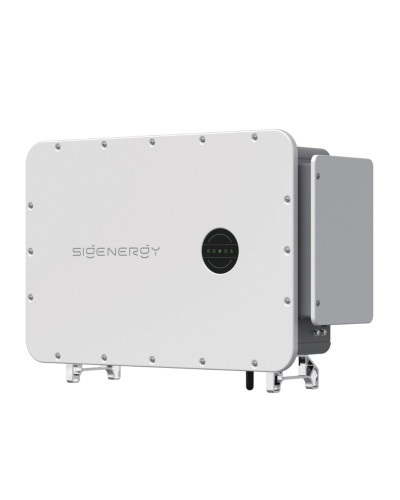

• Nominal AC output power: 60 kW (400 V, 50 Hz)
• Number of MPPTs: 5 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

• Nominal AC output power: 8 kVA (380/400 V, 50/60 Hz)
• Number of MPPTs: 2 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.6%

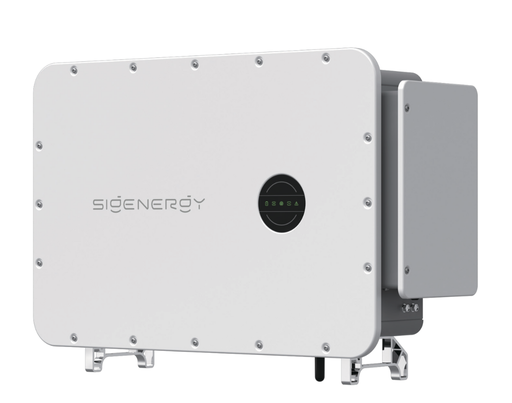

Invertor Sigen PV
Modele: 50M1, 60M1, 80M1, 100M1, 110M1

Intrare DC
Energia fotovoltaică max CC: 90.000 - 198.000 Wp
Tensiune maximă de intrare DC: 1.100 V
Număr MPPT: 4 - 8 (în funcție de model)
Protecție

Funcție de protecție de siguranță: Include întrerupător de circuit de defect de arc, protecție de polaritate inversă DC, monitorizare curent rezidual, protecție la supratensiune DC/AC tip II, protecție la insulă, monitorizare izolație și protecție la supracurent/supratensiune/scurtcircuit CA.
Date generale

Dimensiuni (latime × inaltime × adancime): 918 / 640 / 340 mm
Greutate: 68 - 75 kg
Interval de temperatură de funcționare: -30 ~ 60 °C
Grad de protecție IP: IP66
Comunicare: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

• High capacity: Supports up to 9 inverters.
• Storage compatible: Works with SigenStor, generators, and EVs.
• Safety: Reverse flow 350 ms and 0 ms backup.
• Uninterrupted power: Continuous supply via PV + ESS / grid / generator.

• Nominal AC output power: 80 kW (400 V, 50 Hz)
• Number of MPPTs: 6 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

Sigen Energy Gateway C&I 600 kW

Compatible with up to 30 SigenStor inverters connected in parallel
3 breaker positions reserved for SigenStor or other loads
0 ms switchover to backup mode for uninterrupted energy use
Ready for connection of generator, heat pump, or other controllable loads
350 ms anti-backflow protection for grid and generator
Uninterrupted power supply via PV + ESS / grid / generator

• High capacity: Up to 50 kW and 50 inverters.
• Storage compatible: Works with SigenStor, generators, and EVs.
• Safety: Reverse flow 350 ms and 0 ms backup.
• Uninterrupted power: Supply via PV + ESS / grid / generator.

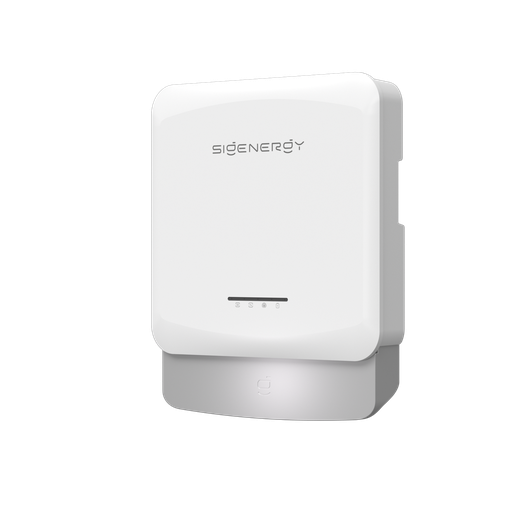

• Compact hybrid inverter: 2 kW nominal power, ideal for small homes or off-grid systems
• Flexible integration: Compatible with solar panels, batteries, and external generators
• Automatic backup: Instant switching (0 ms) to backup mode for critical loads
• Robust design: Slim metal casing, fanless, silent operation (≤25 dB)

• 4 kW three-phase hybrid inverter: Ideal for medium-sized homes or off-grid systems
• Full integration: Compatible with solar panels, SigenStor batteries, and generators
• Automatic backup: Instant switching (0 ms) to backup mode for critical loads
• Robust design: Metal casing, fanless, silent operation (≤25 dB)

• Multiple Sigen C&I inverters connections supported for micro-grid system
• Seamless switchover, ensuring 0ms load-side disruption
• Built-in bypass circuit for enhanced system reliability
• Supports diesel generator connection & smart control
• Real-time current monitoring with 350ms anti-backflow protection

Invertor Sigen PV
Modele: 50M1, 60M1, 80M1, 100M1, 110M1

Intrare DC
Energia fotovoltaică max CC: 90.000 - 198.000 Wp
Tensiune maximă de intrare DC: 1.100 V
Număr MPPT: 4 - 8 (în funcție de model)
Protecție

Funcție de protecție de siguranță: Include întrerupător de circuit de defect de arc, protecție de polaritate inversă DC, monitorizare curent rezidual, protecție la supratensiune DC/AC tip II, protecție la insulă, monitorizare izolație și protecție la supracurent/supratensiune/scurtcircuit CA.
Date generale

Dimensiuni (latime × inaltime × adancime): 918 / 640 / 340 mm
Greutate: 68 - 75 kg
Interval de temperatură de funcționare: -30 ~ 60 °C
Grad de protecție IP: IP66
Comunicare: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
