Sigen Energy Gateway C&I 1600 kW Smart Load Cabinet

Sigen Energy Gateway C&I 2400 kW Smart Load Cabinet

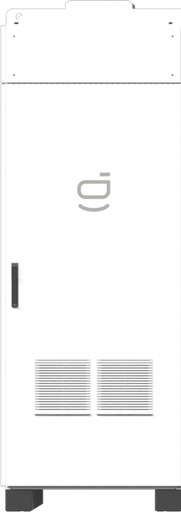

Sigen Energy Gateway C&I 2000 kW Main Cabinet

Multiple Sigen C&I inverters connections supported for micro-grid system
Seamless switchover, ensuring 0ms load-side disruption
Built-in bypass circuit for enhanced system reliability
Supports diesel generator connection & smart control
Real-time current monitoring with 350ms anti-backflow protection

• Immediate backup: 0 ms switching and continuous supply via PV + ESS / grid / generator
• Compatible with loads and SigenStor: Up to 24 kW and controllable devices (generator, heat pump)
• Advanced protection: 350 ms reverse power flow for grid and generator
• Power connections: Supports up to 100 A AC input, inverter 32 A, and optional generator/load 14.5 kW

Invertor Sigen PV
Modele: 50M1, 60M1, 80M1, 100M1, 110M1

Intrare DC
Energia fotovoltaică max CC: 90.000 - 198.000 Wp
Tensiune maximă de intrare DC: 1.100 V
Număr MPPT: 4 - 8 (în funcție de model)
Protecție

Funcție de protecție de siguranță: Include întrerupător de circuit de defect de arc, protecție de polaritate inversă DC, monitorizare curent rezidual, protecție la supratensiune DC/AC tip II, protecție la insulă, monitorizare izolație și protecție la supracurent/supratensiune/scurtcircuit CA.
Date generale

Dimensiuni (latime × inaltime × adancime): 918 / 640 / 340 mm
Greutate: 68 - 75 kg
Interval de temperatură de funcționare: -30 ~ 60 °C
Grad de protecție IP: IP66
Comunicare: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

Invertor Sigen PV
Modele: 50M1, 60M1, 80M1, 100M1, 110M1

Intrare DC
Energia fotovoltaică max CC: 90.000 - 198.000 Wp
Tensiune maximă de intrare DC: 1.100 V
Număr MPPT: 4 - 8 (în funcție de model)
Protecție

Funcție de protecție de siguranță: Include întrerupător de circuit de defect de arc, protecție de polaritate inversă DC, monitorizare curent rezidual, protecție la supratensiune DC/AC tip II, protecție la insulă, monitorizare izolație și protecție la supracurent/supratensiune/scurtcircuit CA.
Date generale

Dimensiuni (latime × inaltime × adancime): 918 / 640 / 340 mm
Greutate: 68 - 75 kg
Interval de temperatură de funcționare: -30 ~ 60 °C
Grad de protecție IP: IP66
Comunicare: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

Solis Híbrido S5-EH1P5K-L (medidor incluido)

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

1-phase meter for 1-phase hybrid inverter with external CT –
SDM120CT (with 1 × CT)

Solis S5-GR3P15K 15KW (2 MPPT)

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis S6-GR1P6K-DC-Meter (6 kW - 2 MPPT)

2 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis-S5-GC40K-DC (4 MPPT)

Three-phase grid connection inverter
Maximum input current: 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis-S5-GR3P10K (10 kW - 2 MPPT)

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis Híbrido S5-EH1P6K-L

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 97.1%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

Solis 3P20kW 4G Three Phase Dual MPPT DC

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis-S5-3P12K-DC (12 kW - 2 MPPT)

1000V three-phase inverter
It has a maximum input current of 22A
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis S6 10kW 3Ph AC Coupled Inverter, for Low Voltage Batteries

Solis S6-GR1P4K-DC (4kW - 2MPPT)

2 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

2 MPPT single-phase hybrid inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP65
Warranty: 5 years extendable up to 20 years

Solis S5-GR1P1.5K-M (1,5 kW)

Maximum input voltage: 600 V
Maximum input current: 12.5 A
Number of MPPTs/Number of entries: 1/1
97.3% maximum efficiency
Integrated AFCI (DC Arc Fault Circuit Protection)
5 year warranty extendable to 20 years
