Energy meters are typically used in an energy storage system, to measure the power and energy of the entire application in the distribution box and minimize the import or export of energy to the grid. They can also be used to measure the output of a PV inverter or AC loads and display the data on GX devices such as the Cerbo GX or Ekrano GX and the VRM gateway.
ET340 (RS485 - for 3-phase max. 65 A)

For simple single-parallel or series-parallel connection of photovoltaic modules.

The Victron EM24 Ethernet is a standard device for measuring the power and energy of a three-phase application, for example in the distribution box or for measuring the output of a PV inverter, an AC generator or an inverter or inverter/charger.

For simple single-parallel or series-parallel connection of photovoltaic modules.

MC4 BULKHEAD CONNECTOR 4-6MM²
MC4 surface mount connectors form the interface between an inverter or distributor housing and a string.

MC4 bulkhead connector 4-6mm²
MC4 surface mount connectors form the interface between an inverter housing or PV panel.

1-phase meter for 1-phase hybrid inverter with external CT –
SDM120CT (with 1 × CT)

Solis-1P-Meter-CT*1

Indirect measurement single-phase wattmeter
Open-core toroids included with measurement capacity per phase of up to 150A and 5 meters of cable
LCD screen for real-time display of measurements
Includes 10m RS485 cable with connector for Solis inverters as standard
DIN35 rail mounting

Solis-3P-Meter-CT*3 (indirect measurement)

Preconfigured and ready to communicate with all three-phase Solis inverters
Indirect measurement wattmeter, installation without the need to modify the customer's installation
DIN35 rail mounting
LCD screen for real-time display of measurements
Open-core toroids included with measurement capacity per phase of up to 150A and 5 meters of cable
Includes 10m RS485 cable with connector for Solis inverters as standard
Ability to use other toroids with a 5 amp secondary simply by setting the transformation ratio

Solis-3P-Meter (Directo)

Direct measurement three-phase wattmeter
DIN35 rail mounting
It controls consumption and performs 0 discharge to the network, it also measures the energy exported to compensate for surpluses
LCD screen for real-time display of measurements
Communication with the inverter via RS485

Features:

Indirect measurement wattmeter, installation without the need to modify the customer's installation.
DIN35 rail mounting
LCD display for real time display of measurements
10m RS485 cable with Solis inverter connector included as standard.
Ability to use other toroidals with secondary at 5 amps simply by setting the transformation ratio

Solis-1P-Meter

Direct measurement single-phase wattmeter
Communication with the inverter via RS485
DIN rail 35
8-bit LCD display
Measuring range (A) : 10(60A)

Rango de temperatura de -40 ° C a + 90 ° C
Máx. Temperatura en el conductor + 120 ° C (20.000 h)
Tensión nominal U0 / UAC1,0 / 1,0 kVDC 1,5 / 1,5 kV
Resistencia a la intemperie y a los rayos UV

SPF 2/1-40/1000/15 (122) - Panou de protectie fotovoltaic
pentru 2 intrari + 1 iesiri.
1000Vdc, 15A pe intrare, cu siguranta, baza sigurantei si
Separator 1000vdc 30A. Protecție la supratensiune
1000vdc 40A. Carcasă de 12 module din ABS. Conectori
cutie de umplutură.

SPF 3/1-40/1000/15 (122) - Panou de protectie fotovoltaic
pentru 3 intrari + 1 iesiri. 1000Vdc, 15A pe intrare, cu
siguranța, baza siguranței și separatorul. 12 plic
Module ABS cu presetupe.

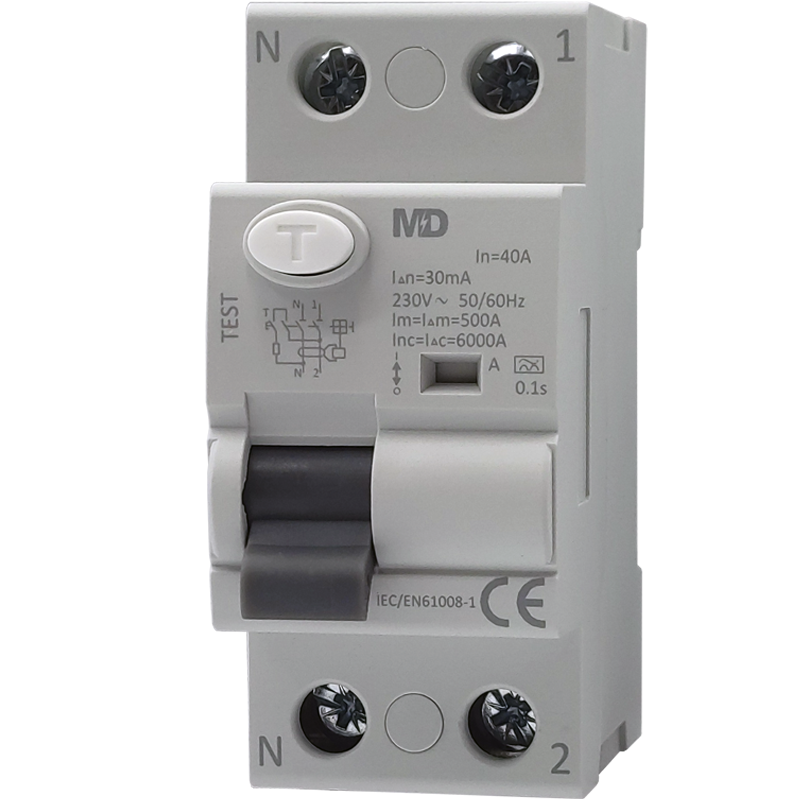

Comutator diferential monofazat 2P. In=30mA (40A) Clasa B (curenți de scurgere alternanți pulsatori lini de până la 1kHz). Cu resetare automată.

Comutator diferential monofazat 2P. In=100mA (40A) Clasa A (curenți alternativi de scurgere sau p). Cu resetare automată.

Comutator diferential monofazat 2P. In=30mA (40A) Clasa B (curenți de scurgere alternanți pulsatori lini de până la 1kHz).

Huawei Smart Power Sensor DTSU666-H (3-Ph).
Valid if cable section doesn't exceeds 95 mm2 and there's not a higher intensity of 250 A.
