Dome 6.10 Classic system connection set

Mounted anti combiner type photovoltaic protection panel
in a 600X400X250 IP65 polyester cabinet composed of
input by 200A NH1 type fuses + Fuse Bases,
outputs using 20A 1000vdc fuses with protection of
surges. Cable gland, assembled and pre-wired

Stops power losses
Prevents the PID effect
Measures insulation resistance.
IP56
MC4 connection
Output for 3 MPPT, chains up to 1000V with common negative
3 relay output

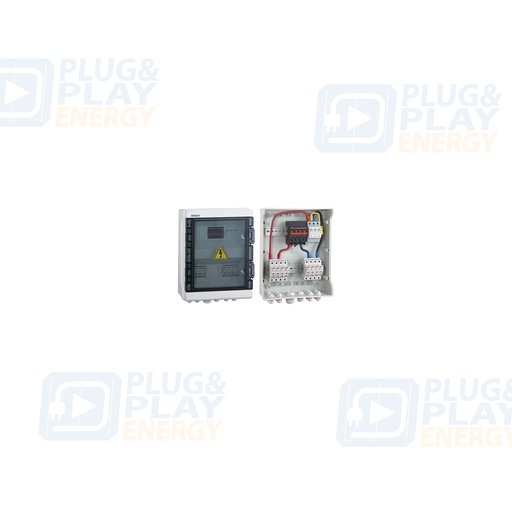

Custom photovoltaic protection panel with 4 inputs and 1
outlet with polyester envelope IP66 measurements
H530xW430xD200mm, with 1000Vdc-160A disconnector with
direct drive, 40kA 1000vdc + surge protector
1000vdc 63A NH1 type fuses and fuse holders, connections
with cable gland, assembled and pre-wired

Temperature sensor by modulului will increase the temperature of the solar panourilor spate in Celsius (°C) folosind or PT1000 probe. Probe, folosită pentru măsurarea temperaturii părții din spate a modulului, este plasată între două foi din spate cu lie EVA. This temperature sensor module is compatible with the bottom of the SEVEN temperature sensor.

Main advantage of the sensor is this structure, which is similar to the part in the spate of the photovoltaic module. Mainly, the transfer behavior of heat to the sensor and the photovoltaic module is similar, this is the case.

Part number 3S-MT-PT1000
Senzor tip PT1000
Temperature range -40°C to +85°C
Accuracy ±0.1°C
Rezoluție 0.1°C
Ieșire PT1000
Electrical connection LIYYC11Y PUR Cable of 3 m, resistant to UV rays and intemperii
Operating temperature -40°C to +85°C
Sensor capacity size Ø 35mm x 3mm
Greutate 77 gr
Evaluate IP IP 67
Material capac senzor Foaie din spate laminată (EVA – Tedlar)
Mounting method Autocolant 3m pe spatele panoului
Standardul Class A conform to IEC 60751:2022

Observations:
Photovoltaic inverters and PCS are available from different manufacturers.
Notes:
Project needs: They need a timer to charge or discharge the batteries. The programmer would cause the batteries to be charged at their maximum power, but always limited to the energy they obtain from the photovoltaic (you never want to consume energy from the grid). This time programmer should be able to be manipulated through a website/mobile application. Monitoring is included
Solution proposal: Renlogger in the plant. (Technical room). They have internet connection there (equipment included in the offer). In Renlogger we would set up: GWTCP to collect information from investors
(photovoltaic and bidirectional) On the GWTCP we integrated a specific regulator according to its needs with time control that would send the orders to the bidirectional inverters according to the time and the power produced. Web server with a basic interface (responsive to be able to manage it from your mobile) that allows you to adjust the regulator parameters (and perhaps see instantaneous data from the plant at all times).

Circutor Network Analyzer CVM-E3-MINI-MC-485-IC ref. M56454.

• Sigen EV DC 12.5kW VE Charger: Includes 7.5m CCS2 cable for fast and safe charging.
• Max. 12.5kW stable bidirectional charging.
• Ultra-wide range: Full compatibility with VE (150-1000V) and CCS2 connector.
• IP66 protection, maintenance free.

[MD00138] BV2M-40/240 - Single-phase surge protectors Type 2
• Maximum service voltage Uc = 275 V. Protection level [N-T] Up = 1.2 kV. Maximum discharge current (8/20) Imax = 40 kA. Mounting on DIN rail, pluggable, width 1 module (18mm).

Measurements (H×W×D): 90×18×68 mm
Weight: 0.13kg
Technical source: MD Technological Equipment - BV2M-40/240 technical sheet

Temperature Sensor Module, PT1000 with output
analog,
Measuring range: -40°C to +85°C
Power supply 12...30 V DC
4-20mA output
Accuracy: ±0.1°C
Housing: Plastic housing with aluminum plate, H x
W x L: 12mm x 50mm x 50mm
3 m PUR cable, UV and weather resistant
The Class A Standard according to IEC 60751:2022

Photovoltaic protection panel with 7 inputs and 7 outputs of 1000vdc with 16A disconnector, 20A fuses in 10x38 and type II surge protection 40kA, 1000vdc. per string, double-insulated polyester hybrid envelope and transparent polycarbonate cover with 720x540x201 gasket, with cable gland, assembled and pre-wired.

Protection box
photovoltaic with 16 inputs and 16 outputs, mounted on a plate
800x600x300mm IP66 polyester cabinet with door
opaque Composed of 32 fuse bases and fuses
10x38 15A 1kV + surge protection BF3-
40/1000vdc with bulkhead, assembled and pre-wired.

Combiner type photovoltaic protection panel

Custom-made with 13 inputs and 1 output with 1500 VDC 400A disconnector, + fuse bases and 14x85 1500vdc 16A fuses in IP66 polyester cabinet 747x536x300mm with opaque door, with wall grommet and cable gland for ground, assembled and pre-wired.

Coplanar kit for 2 vertically installed modules of 60 and 72 cells, with a frame between 30 and 42 mm.

The kit includes:

Light Guide 2.4 m
OneEnd final plate set
OneMid center plate set
Protection cap for Light guide
Self-tapping rod set M10x250

SPF 1/1 string, MC4 type connector, protection fuses, 40kA 8/20, cartridge (1000Vdc), box with 6 IP65 modules

Sigen accessory - IP68 RJ45 connector for outdoors

Sigen Accessory - WiFi Antenna

Sigen Accessory- AC SP Connector (3-6kW)

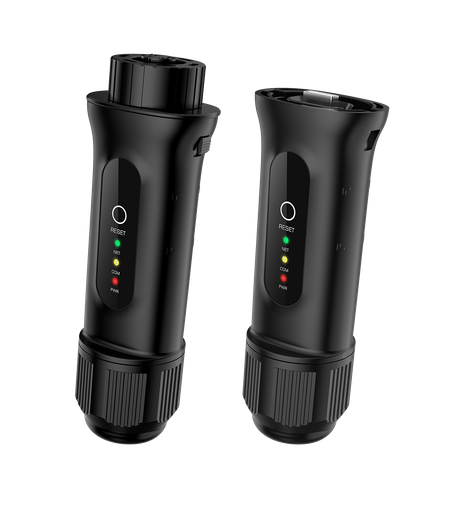

Up to 10 inverters can be connected to S2-RF-LINK. Insert the data logger directly into the inverter
port , the gateway uses wired ethernet to connect to the home router, and transmits data to
SolisCloud. SolisCloud, the Solis monitoring platform, allows for remote system monitoring and
control. The data is clear and detailed, making it easy to monitor and troubleshoot from anywhere
anytime.

Supports WiFi and LAN communication
• Plug and play, quick installation
• Fault alarm, real-time monitoring
• Status indicator, easy to show working status
• RESET button, one key to send data, convenient debugging
• Supports Bluetooth close connection and debugging
• One-key inverter address assignment,
efficient and labor saving
