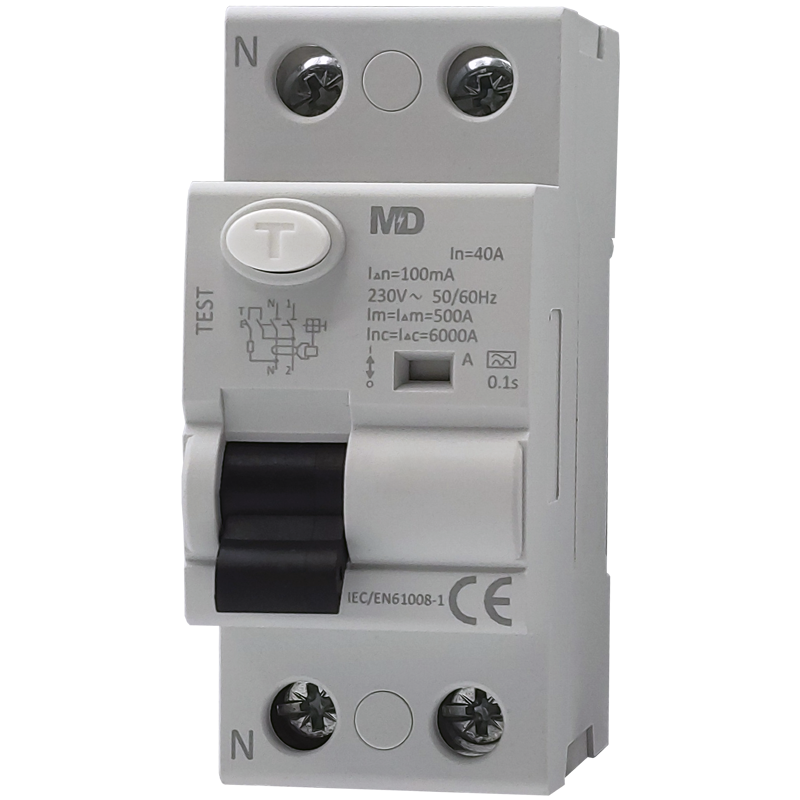

Differential switch type A 2P 40A 100mA (HW suggestion)
P&P4464Interruptor diferencial monofásico 2P. In=100mA (40A) Clase A (corrientes de fugas alternas o p). Con rearme automático.
Technical guide
Compatibility and configuration
Official data for RCCB 2P Type A 100 mA: residual-current circuit breaker for low-voltage AC systems
Standard
IEC/EN 61008-1
Poles
2 poles
Voltage
230 Vac
Current
40 A
Residual class
A
Frequency
50/60 Hz
Impulse withstand
4 kV
Residual current
100 mA
Official weight
0.20 kg
Technical frequently asked questions
What is its function?
It interrupts the circuit when residual leakage is detected.
Which system is it compatible with?
It is suitable for 230 V low-voltage AC installations within its ratings.
What must be checked before installation?
Check poles, Class A, 100 mA sensitivity, current, wiring, test and 3.5 Nm torque.
Official source published on this product page: data sheet. Specifications are subject to the conditions in the linked document.
