Solis-100K-5G-DC (10 MPPT)

Maximum input voltage: 1100V
Maximum input current: 10*26A
Maximum efficiency: 98.7%
DC reverse polarity/temperature/short circuit and surge protection
Incorporates type II surge protection in AC and DC
5-year warranty (extendable up to 20 years)

Double glass module with TOPCon N-Type technology and 510W power.
MC4-EVO2 connectors and 1400mm cable for vertical and horizontal installation.
Black frame and product warranty 25 years.
Measures 1961 x 1134 x 30 mm.
Pallet: 36 panels
Container: 864 panels

Huawei 5KTL-L1

Smart Dongle - WLAN-FE Included
Maximum input voltage: 1,100 V
Maximum input current per MPPT: 13.5A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP65
Maximum efficiency: 98.4%
10 year warranty

• High power and efficiency: 465 W and 23.8 % efficiency
• N-Type ABC technology: degradation ≤0.35 % per year
• Double glass: greater durability, strength, and IEC A fire rating
• Optimized for BOS: Pmax temperature coefficient -0.26 %/°C and positive power tolerance

Solis-S5-GC40K-DC (4 MPPT)

Three-phase grid connection inverter
Maximum input current: 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Three-phase inverter of 15 Kw (2 MPPT) "without transformer"

They do not have the WLAN communication module installed, so the inverter data cannot be monitored over the Internet

Maximum input current: 33A/27A (MPPT1/MPPT2)
Maximum input voltage: 1000V
IP66 protection
Efficiency 98.1%
2 years warranty

Huawei 10KTL-M1 HC

Maximum input voltage: 1100V
Maximum input current per MPPT: 11 A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Smart Dongle - WLAN-FE Included
Protection: IP65
Maximum efficiency: 98.6%
10 year warranty

Solis-100K-5G-PRO (8 MPPT)

8 MPPT three-phase inverter (up to 16 input strings)
Maximum input voltage: 1100V
Maximum input current: 36 A / 32 A
Maximum efficiency: 98.5%
DC reverse polarity / temperature / anti-islanding / short circuit and surge protection
5-year warranty (extendable up to 20 years)

Huawei 5KTL-M1 HC

Smart Dongle - WLAN-FE Included
Maximum input voltage: 1,100 V
Maximum input current per MPPT: 13.5A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP65
Maximum efficiency: 98.4%
10 year warranty

Huawei DDSU666-H (1-Ph)

Indirect measurement wattmeter (ampere clamp included)
It allows measuring the consumption of our electrical network.
With an RS485 communication interface to communicate with Huawei inverters
3 years warranty.

Tensión 48 V (45….53,5 Vdc)
Potencia disponible 90% (3,2kW)
Descarga recomendada 37 A (1,7 kW)
Descarga máxima 74 A (3,5 kW)
Conexión Can-Bus y RS485
Compatible con Victron y Solis
> 6000 ciclos de vida @ 25ºC (15 años)
Dimensiones: 442mm x 420mm x 132mm
Peso: 32 kg.

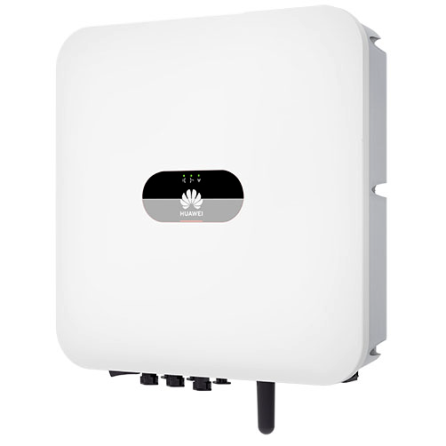

Huawei 4KTL-L1

Smart Dongle - WLAN Included
Maximum input voltage: 600V
Maximum intensity by MPPT: 12.5A
Anti-islanding / reverse polarity protection DC / temperature / AC overcurrent, short circuit and overvoltage
Maximum efficiency:98%
Protection: IP65
10 year warranty

Solis Híbrido RHI-3.6K-48ES-DC (medidor incluido)

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 11 A / 11 A
Maximum efficiency: 97.5%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

2 MPPT single-phase hybrid inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP65
Warranty: 5 years extendable up to 20 years

Solis S5-GC60K-DC (60 kW - 6 MPPT)

Voltaje máximo de entrada: 1100V
Corriente máxima de entrada: 6*32A
Número máximo de cadenas de entrada: 12
Eficiencia máxima: 98.7%
Protección contra polaridad inversa DC / sobrecorriente de salida / contra cortocircuito / temperatura y anti-isla
5 años de garantía ampliables a 20 años

Solis-33K-5G-DC (3 MPPT)

4MPPT Three Phase Grid Inverter (Max 6 Input Strings)
Maximum input voltage: 1100V
MPPT voltage range: 200-1000V
Maximum input current: 26A
Maximum efficiency: 98.8%
Protection against reverse polarity DC / short circuit / output overcurrent and temperature
Protection: IP65

Solis 30kw 5G Three Phase TRIPLE MPPT DC

3MPPT Three Phase Grid Inverter (Max 6 Input Strings)
Maximum input voltage: 1100V
MPPT voltage range: 200-1000V
Maximum input current: 26A
Maximum efficiency: 98.8%
Protection against reverse polarity DC / short circuit / output overcurrent and temperature
Protection: IP65

Solis 3P20kW 4G Three Phase Dual MPPT DC

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis-S5-GR3P10K (10 kW - 2 MPPT)

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Huawei 2KTL-L1 (2MPPT)

Smart Dongle - WLAN Included
Maximum input voltage: 600V
Maximum intensity by MPPT: 12.5A
Anti-islanding / reverse polarity protection DC / temperature / AC overcurrent, short circuit and overvoltage
Protection: IP65
10 year warranty
