Huawei 30KTL-M3

Maximum input voltage: 1100V
Maximum current per MPPT: 26A
Anti-islanding / AC overcurrent / DC reverse polarity protection
IP66 protection
Maximum efficiency: 98.7%
5 year warranty

Huawei 36KTL-M3

Maximum input voltage: 1100V
Maximum intensity by MPPT: 26A
Anti-island protection / AC overcurrent / against DC reverse polarity
IP66 protection
Maximum efficiency: 98.7%
5 year warranty

Huawei 40KTL-M3

Maximum input voltage: 1100V
Maximum current per MPPT: 26A
Anti-islanding / AC overcurrent / DC reverse polarity protection
IP66 protection
Maximum efficiency: 98.4%
5 year warranty

Export Manager 5G (Para sistemas trifásicos)

Energy export manager for three-phase systems.
Monitor power generation and load consumption at all times.
Input voltage: 175~519V (L-L)
Rated voltage: 3/N/PE, 230V / 400V
Monitoring via WiFi/4G/LAN Stick (Optional)
Communication via Modbus (RS485)

25kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 year

Features:

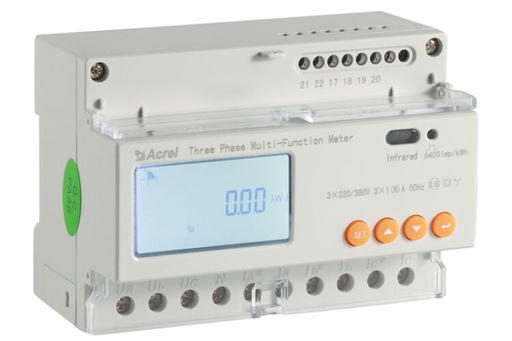

Indirect measurement wattmeter, installation without the need to modify the customer's installation.
DIN35 rail mounting
LCD display for real time display of measurements
10m RS485 cable with Solis inverter connector included as standard.
Ability to use other toroidals with secondary at 5 amps simply by setting the transformation ratio

Solis 5G 110kW 3Ph Inverter, 10 MPPT

10 MPPT, 98.7% maximum efficiency
> 150% DC/AC ratio
High power tracking density 90 MPPT/MW
Compatible with bifacial modules
Maximum input voltage 1100 V
Communication:RS485, Optional: Wi-Fi, GPRS, PLC

Solis Hybrid S6-EH3P10K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66

High efficiency:
- 12 MPPTs with max. efficiency 98.5%.
- Compatible with bifacial modules
- Integrated anti-PID and PID recovery function

Smart O&M:
- Contactless start-up and remote firmware update
- Online curve IV* analysis and diagnostics
- Fuse-free design with intelligent current monitoring per string

Safety tested
- IP66 and C5 anti-corrosion protection
- SPD DC Type II and AC Type I + II protection
- Complies with network and global safety codes

12kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 years

Huawei 15KTL-M5

Maximum input voltage: 1100V
Maximum input current: 40A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP66
Maximum efficiency: 98.4%
10 year warranty

20kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 years

Solis Hybrid S6-EH3P8K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66

Huawei SUN2000-12KTL-M5

Maximum input voltage: 1100V
Maximum input current: 40A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP66
Maximum efficiency: 98.4%
10 year warranty

Solis 110kW 5G Three Phase 8 MPPT DC

8 MPPT three-phase inverter (up to 16 input strings)
Maximum input voltage: 1100V
Maximum input current: 36 A / 32 A
Maximum efficiency: 98.5%
DC reverse polarity/temperature/short circuit and surge protection
5-year warranty (extendable up to 20 years)

17kw three-phase inverter hybrid - 4MPPT

Max. input voltage: 1100V
Max. Rated input voltage: 600V
Max. intensity per MPPT: 16A
Maximum efficiency:98.4%
Protection: IP66
10 year warranty

• Single-phase hybrid inverter 5 kW - 2 MPPT
• Max. input voltage: 1100 V
• Max. rated input voltage: 600 V
• Maximum efficiency: 98%
• Protection: IP66

• Single-phase hybrid inverter 4 kW - 2 MPPT
• Max. input voltage: 1100 V
• Max. rated input voltage: 600 V
• Maximum efficiency: 98.4%
• Protection: IP66

• Single-phase hybrid inverter 3 kW: 2 MPPT.
• Max. input voltage: 1100 V.
• Max. nominal input voltage: 600 V.
• Maximum efficiency: 98.4 %.
• Protection: IP66, dust- and water-resistant.

20kw three-phase inverter hybrid - 4MPPT

Max. input voltage: 1100V
Max. Rated input voltage: 600V
Max. intensity per MPPT: 16A
Maximum efficiency:98.4%
Protection: IP66
10 year warranty
