• Nominal AC output power: 100 kW (380/400 V, 50/60 Hz)
• Number of MPPTs: 8 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,3%

• High density: 12 kWh/module, up to 253 kWh/system
• Safety: IP66, fire suppression, cell thermal control
• Compatible & scalable: CAN integration with Sigenergy inverters, 4‑21 modules
• Fast installation: Ground mount, air cooling, simple commissioning

• Modular compatibility: Supports up to 5 SigenStack 0.5C modules
• Stackable design: Compact (770 × 195 × 363 mm) and easy to install
• Integrated connectivity: Power and communication interfaces included
• IP66 rating: Dust and water resistant

• Nominal AC output power: 50 kW (400 V, 50 Hz)
• Number of MPPTs: 4 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

• Nominal AC output power: 110 kW (380/400 V, 50/60 Hz)
• Number of MPPTs: 8 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,3%

• Nominal AC output power: 80 kW (400 V, 50 Hz)
• Number of MPPTs: 6 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

• Nominal AC output power: 60 kW (400 V, 50 Hz)
• Number of MPPTs: 5 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

Sigen Gateway HomeMax SP

• 3 breaker positions reserved for SigenStor or other loads
• 0 ms switch to backup mode, worry-free energy usage
• Ready for generator, heat pump or other controllable loads
• Support both whole home backup & partial home backup
• 350 ms reverse power flow protection of grid & generator
• Uninterrupted power supply through PV+ESS/grid/generator

Grid Connection

Type Single phase
Max. AC input current 100

Distribution Panel
Max. AC input current 100

Inverter Connection
Max. no. of connection 3
Max. AC cuicirt breaker 32

Generator/Controllable Load (optional)
Max. AC input/output power 14.5
Max. continuous input/output current 63

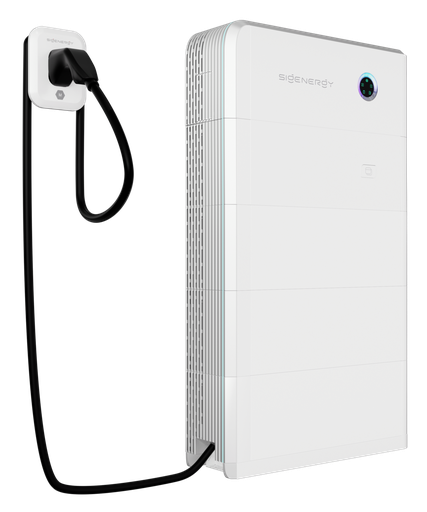

• 12.5 kW bidirectional: V2X technology to charge the EV and power your home or the grid.
• Ultra-wide range: Full compatibility with EVs (150-1000 V) and CCS2 connector.
• Cooling: Intelligent air cooling.
• IP66 and maintenance-free: Robust outdoor design with remote control via app.

• Sigen EV DC Charger 25 kW: 10 m CCS1, CCS2, and CHAdeMO cable for fast and safe charging.
• Max. stable bidirectional charging of 25  kW.
• Ultra-wide range: Full compatibility with EVs (150-1000 V) and CCS2 connector.
• IP66 protection, maintenance-free.

Solis Híbrido S6-EH3P10K-H (medidor incluido)

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 1000 V
Maximum input current: 16 A / 16 A
Maximum efficiency: 96.5%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

Features:

160% overload capacity for 2 seconds.
Supports a maximum input current of 20A, making it ideal for all high-power photovoltaic modules of any brand.
Real-time battery monitoring, remote updates, and battery recovery function to extend battery lifespan.
Compatible with peak shaving functions in "self-consumption" and "generator" modes.
Supports unbalanced and half-wave loads on both the grid and backup ports.
Wide battery voltage range compatible with the most common high-voltage lithium batteries on the market.
Battery charge/discharge current of 140A/70A+70A, suitable for the standard 0.5C application with 280Ah cells.
Allows a DC/AC ratio of 200%, maximizing photovoltaic charging and providing extended backup.

Features:

160% overload capacity for 2 seconds.
Supports a maximum input current of 20A, making it ideal for all high-power photovoltaic modules of any brand.
Real-time battery monitoring, remote updates, and battery recovery function to extend battery lifespan.
Compatible with peak shaving functions in "self-consumption" and "generator" modes.
Supports unbalanced and half-wave loads on both the grid and backup ports.
Wide battery voltage range compatible with the most common high-voltage lithium batteries on the market.
Battery charge/discharge current of 140A/70A+70A, suitable for the standard 0.5C application with 280Ah cells.
Allows a DC/AC ratio of 200%, maximizing photovoltaic charging and providing extended backup.

Incluye cable (120cm aprox.) y sistema de conectores MC4 EVO2
Robusto marco de aluminio anodizado
Vidrio solar térmicamente pretensado
Células solares de alta calidad
Versión con 11 busbars

• Nominal AC output power: 125 kW (400 V, 50/60 Hz)
• Number of MPPTs: 8 independent inputs (2 strings per MPPT)
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98,6%

Solis Hybrid S6-EH3P8K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66

Solis S6 10kW 3Ph AC Coupled Inverter, for Low Voltage Batteries

Solis Hybrid S6-EH3P8K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66

Solis Hybrid S6-EH3P8K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66
