Solis-S5-GC40K-DC (4 MPPT)

Three-phase grid connection inverter
Maximum input current: 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series-connected PV arrays charging 48 VDC battery banks. This product is perfect for large off-grid and grid-connected battery systems.

This 5.76 kW model features a solar voltage input operating between 80 and 450 VDC, independent tracking inputs, full connectivity, isolated PV connections, display, fully programmable battery charging parameters and active cooling. The new metal housing design and fully enclosed electrical connections enhance safety and modernize the presentation in accordance with Victron's latest product series.

For simple single-parallel or series-parallel connection of photovoltaic modules.

A power meter transmits the measured amount of power to the SolarLog for analysis. It serves as a consumption meter, showing a comparison of produced and consumed power. It can be configured to operate with the SolarLog in three different modes:
- Measuring energy consumption for optimal utilization of the power generated.
- Measuring the total amount of energy that has been fed into the grid.
- Measuring the energy production of inverters that are not directly managed by SolarLog.

For simple single-parallel or series-parallel connection of photovoltaic modules.

Solis-3P-Meter-CT*3 (indirect measurement)

Preconfigured and ready to communicate with all three-phase Solis inverters
Indirect measurement wattmeter, installation without the need to modify the customer's installation
DIN35 rail mounting
LCD screen for real-time display of measurements
Open-core toroids included with measurement capacity per phase of up to 150A and 5 meters of cable
Includes 10m RS485 cable with connector for Solis inverters as standard
Ability to use other toroids with a 5 amp secondary simply by setting the transformation ratio

Solis-1P-Meter-CT*1

Indirect measurement single-phase wattmeter
Open-core toroids included with measurement capacity per phase of up to 150A and 5 meters of cable
LCD screen for real-time display of measurements
Includes 10m RS485 cable with connector for Solis inverters as standard
DIN35 rail mounting

Solis 3P20kW 4G Three Phase Dual MPPT DC

1100V Three Phase Inverter
Features a maximum input current of 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

La pestaña serrada (similar a ISO 4161) evita que se suelte
accidentalmente

The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series-connected PV arrays charging 48 VDC battery banks. This product is perfect for large off-grid and grid-connected battery systems.

This 11.52 kW model features a solar voltage input operating between 80 and 450 VDC, independent tracking inputs, full connectivity, isolated PV connections, display, fully programmable battery charging parameters and active cooling. The new metal housing design and fully enclosed electrical connections enhance safety and modernize the presentation in accordance with Victron's latest product series.

Regulador incluido, ideal para instalaciones solares híbridas.

Compatible con generadores, lo que permite prolongar la duración de la reserva durante cortes de red eléctrica.

Capacidad de trabajo en paralelo, permitiendo que varios inversores funcionen juntos como una microrred.

Dispone de dos puertos de reserva para control inteligente de cargas críticas y no críticas.

Soporta seis configuraciones de TOU (tiempo de uso) para cargar y descargar la batería según el precio de la electricidad, optimizando la factura eléctrica.

Permite sobrecargas del 200% durante 10 segundos, ideal para picos de consumo.

Admite ajustes generales para baterías de litio, compatible con baterías de plomo.

Inteligente:
- Monitorización a nivel de string
Eficiente:
- Eficiencia máxima 98.7%
Seguro:
- Diseño sin fusibles
Confiable:
- Descargadores de sobretensión tipo II de CC y CA
Tensión de entrada máx. 1100
Corriente máxima de entrada 120
Nº seguidores MPP 4
Modelo sin transformador, w/o display
Eficiencia europea 98.0000
L*An*Al (mm) 530 * 640 * 270
Potencia nominal AC 50.0000
Potencia máxima AC 55.0000
Eficiencia máxima 98.5000
rango MPP 200 - 1000
Número máx. series: 8
protección IP66
Peso (kg): 49.00

SUNMETER PRO con celda solar LAMINADO con VIDRIO SOLAR
y con los mismos elementos que en el módulo fotovoltaico.
Clase A; Salida en Modbus RS485, Irradiancia prec ± 2,1 %, Temp prec. ± 0,5°C.
Caso en aluminio anodizado. Con soporte de montaje y temperatura
entrada de sonda Precisión 2,%.
Servicio de recalibración después del 18/12 meses incluidos.

• 3 breaker positions reserved for SigenStor or other loads.
• Switch to backup mode in 0 ms, uninterrupted energy use.
• Reverse power flow protection of 350 ms from grid or generator.
• Uninterrupted power supply via PV+ESS/grid/generator.

Sigen Gateway HomeMax TP (Three-phase) for 12 inverters

3 breaker positions reserved for SigenStor or other loads
0 ms switchover to backup mode, worry-free energy use
Ready for generator, heat pump, or other controllable loads
Supports whole-home and partial-home backup
350 ms reverse power flow protection from grid and generator
Uninterrupted power supply via PV+ESS/grid/generator

Sigen Energy Gateway C&I 600 kW

Compatible with up to 30 SigenStor inverters connected in parallel
3 breaker positions reserved for SigenStor or other loads
0 ms switchover to backup mode for uninterrupted energy use
Ready for connection of generator, heat pump, or other controllable loads
350 ms anti-backflow protection for grid and generator
Uninterrupted power supply via PV + ESS / grid / generator

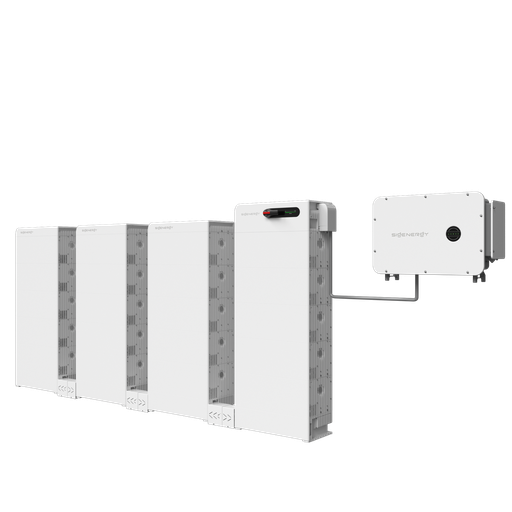

SigenStack Battery Controller M1 - 0.5C
This is the main controller for the battery modules in the SigenStack series. Its function is to regulate and optimize the performance of the energy storage system in each tower, enabling efficient management of the stored energy. The maximum capacity that can be installed per tower controller is 252 kWh.

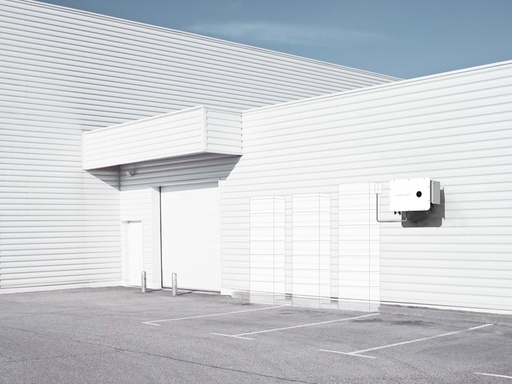

The SigenStack cover serves as protection for the battery modules inside the tower. Its main function is to safeguard the modules from external elements such as dust, moisture, and adverse environmental conditions, helping to extend the system's lifespan and maintain installation safety.

Sigen Gateway HomeMax SP

• 3 breaker positions reserved for SigenStor or other loads
• 0 ms switch to backup mode, worry-free energy usage
• Ready for generator, heat pump or other controllable loads
• Support both whole home backup & partial home backup
• 350 ms reverse power flow protection of grid & generator
• Uninterrupted power supply through PV+ESS/grid/generator

Grid Connection

Type Single phase
Max. AC input current 100

Distribution Panel
Max. AC input current 100

Inverter Connection
Max. no. of connection 3
Max. AC cuicirt breaker 32

Generator/Controllable Load (optional)
Max. AC input/output power 14.5
Max. continuous input/output current 63

Huawei LUNA2000-7- Base y BMS
Permite gestionar de 1 a 3 módulos de batería
Compatible con los inversores residenciales:

SUN2000-2~6KTL-L1
SUN2000-8~10K-LC0
SUN2000-3~10KTL-M1
SUN2000-12~25K-MB0

Escalabilidad:

Hasta cuatro torres de batería por inversor (serie MB0).
Hasta tres inversores con batería por instalación.

Requisitos adicionales:

Contador de energía.
Elemento de comunicación adicional (Dongle WLAN-FE, Dongle 4G o SmartLogger) en sistemas con inversores en cascada.
