Solis-S5-GC40K-DC (4 MPPT)

Three-phase grid connection inverter
Maximum input current: 32A
Certified 0 injection
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

3000VA 24V 230V IP21 (Incluye cargador 70A y color control)

Energy Meter single-phase 100 A maximum.
The Energy Meter can be used for these things:
1. grid meter, and used as a control input for an ESS System (1).
2. Measuring the output of a photovoltaic inverter.
3. Measuring the output of an AC generator set.
The meter is connected to the Color Control GX. There are two options for its wiring:
1. direct connection, using the RS485 to USB interface with a 1.8 m long cable, or the 5.0 m long cable.
2. Wireless connection via Zigbee

El Color Control GX es el centro de comunicaciones de su instalación. Ofrece información en tiempo real de un vistazo y le permite controlar todos los productos conectados a él. Podrá controlar todo el sistema - desde prácticamente cualquier parte del mundo - accediendo a su Color Control GX mediante nuestro Portal Victron Remote Management (VRM), de uso gratuito.

The Victron RS485 to USB interface is a cable with adapter for communicating RS485 devices such as energy meters to other USB devices such as Cerbo, Color Control, etc.

Huawei DDSU666-H (1-Ph)

Indirect measurement wattmeter (ampere clamp included)
It allows measuring the consumption of our electrical network.
With an RS485 communication interface to communicate with Huawei inverters
3 years warranty.

Solis-3P-Meter (Directo)

Direct measurement three-phase wattmeter
DIN35 rail mounting
It controls consumption and performs 0 discharge to the network, it also measures the energy exported to compensate for surpluses
LCD screen for real-time display of measurements
Communication with the inverter via RS485

Solis-S5-3P12K-DC (12 kW - 2 MPPT)

1000V three-phase inverter
It has a maximum input current of 22A
Protection against overvoltage, short circuit, output overcurrent and against DC reverse polarity
Standard 5-year warranty extendable up to 20 years

Solis S5-GR3P5K

Non-hybrid three-phase inverter
MPPT voltage range: 160-1000V
Maximum input voltage: 1100 V
Maximum input current: 16 A / 16 A
Number of MPPTs/Number of entries: 2/2
Protection against DC reverse polarity / output overcurrent and temperature
5 year warranty extendable up to 20 years

Huawei Luna Wall Mounting Bracket
Wall mounting kit for Huawei LUNA2000

Venus/ColorControl GX and BYD/Pylontech Communication Cable
Manufacturer: Victron Energy, 5 year limited warranty

Solis-EPM1-5G

Energy export manager for single-phase systems
Input voltage: 100~300V (L-N)
Rated voltage: 1/N/PE, 230V
Monitoring via WiFi/4G/LAN Stick (Optional)
Communication via Modbus (RS485)

Solis 5G 110kW 3Ph Inverter, 10 MPPT

10 MPPT, 98.7% maximum efficiency
> 150% DC/AC ratio
High power tracking density 90 MPPT/MW
Compatible with bifacial modules
Maximum input voltage 1100 V
Communication:RS485, Optional: Wi-Fi, GPRS, PLC

Huawei FusionSolar Charger AC 7.4 - 7kW/32A

It has a Type 2 connection and is configurable in a range from 1.4kW to 7.4kW.
Possibility of dynamic load control based on the contracted power
Supported communication mode: WiFi, Ethernet, RFID, RS485
Rated Voltage: 230V
Charging power: 1.4kw to 7.4kw
Overcurrent and temperature protection

Compact equipment for decentralized systems and large-scale photovoltaic systems due to its high power density.

“Active cooling” with speed-controlled fans ensure optimal
optimal cooling with lower energy consumption, maximizes production
due to temperature reduction

Max power of PV generator: 360 kWp
Max input voltage 1500V
Max input current/Max short circuit current: 180 A/325 A
Number of MPP followers: 1
Certificate for Spain and Portugal
5 year warranty

5kw single phase inverter hybrid - 2MPPT

Max. input voltage: 1100V
Max. Rated input voltage: 600V
Max. intensity per MPPT: 16A
Maximum efficiency:98%
Protection: IP66
10 year warranty

4kw single phase inverter hybrid- 2MPPT

Max. input voltage: 1100V
Max. Rated input voltage: 600V
Max. intensity per MPPT: 16A
Maximum efficiency:98.4%
Protection: IP66
10 year warranty

3kw single phase inverter hybrid - 2MPPT

Max. input voltage: 1100V
Max. Rated input voltage: 600V
Max. intensity per MPPT: 16A
Maximum efficiency:98.4%
Protection: IP66
10 year warranty

5kw three phase inverter hybrid - 2MPPT

Max. input voltage: 1100V
Max. Rated input voltage: 600V
Max. intensity per MPPT: 16A
Maximum efficiency:98%
Protection: IP66
10 year warranty

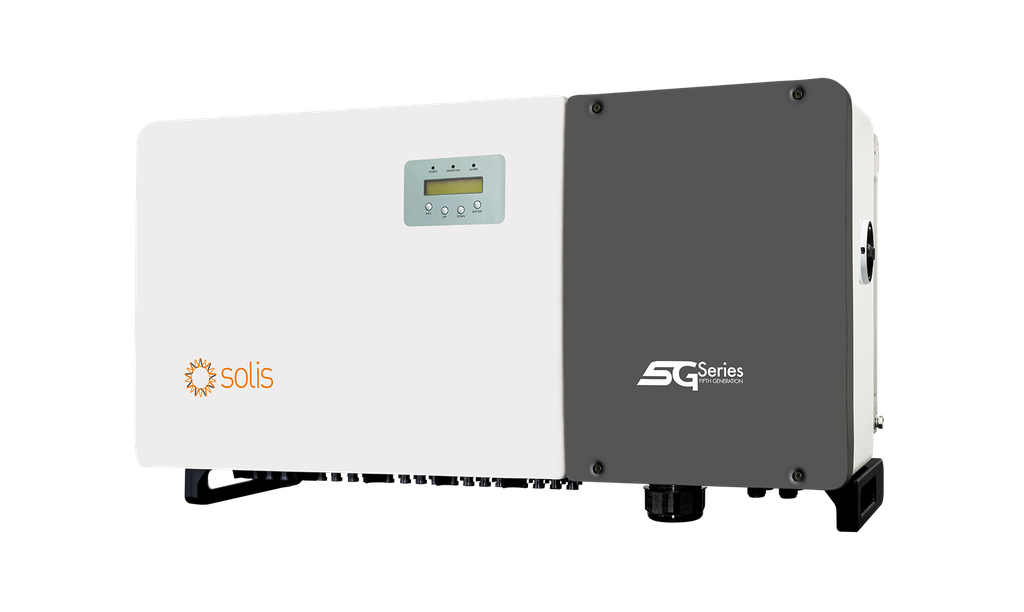

Solis-100K-5G-DC (10 MPPT)

Maximum input voltage: 1100V
Maximum input current: 10*26A
Maximum efficiency: 98.7%
DC reverse polarity/temperature/short circuit and surge protection
Incorporates type II surge protection in AC and DC
5-year warranty (extendable up to 20 years)
