Visualización del estado de baterías.

Función de desconexión de la salida de carga por baja tensión de la batería. Salida de carga protegida contra sobrecarga y cortocircuitos. Protegido contra la polaridad inversa de los paneles solares y/o de la batería. Tensión de la batería 12/24V; Corriente de carga nominal 20A; IP20.

10kw three-phase hybrid inverter (2MPPT) "Without transformer"

Integrated back-up system

They are compatible with BYD B-Box premium HVM high-voltage batteries (from 11kWh)

Max input current (Idc max MPPT1 / MPPT2): 25A / 12.5A
Maximum voltage: 1000V
IP66 protection
Warranty: 2 years

Batería Rolls 6 V 546Ah

Tensión 48 V (45….53,5 Vdc)
Potencia disponible 90% (3,2kW)
Descarga recomendada 37 A (1,7 kW)
Descarga máxima 74 A (3,5 kW)
Conexión Can-Bus y RS485
Compatible con Victron y Solis
> 6000 ciclos de vida @ 25ºC (15 años)
Dimensiones: 442mm x 420mm x 132mm
Peso: 32 kg.

Huawei 4KTL-L1

Smart Dongle - WLAN Included
Maximum input voltage: 600V
Maximum intensity by MPPT: 12.5A
Anti-islanding / reverse polarity protection DC / temperature / AC overcurrent, short circuit and overvoltage
Maximum efficiency:98%
Protection: IP65
10 year warranty

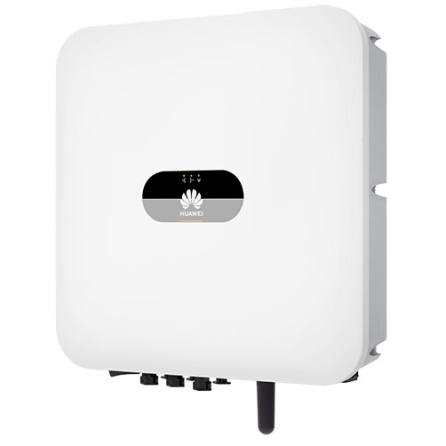

Huawei 5KTL-L1

Smart Dongle - WLAN-FE Included
Maximum input voltage: 1,100 V
Maximum input current per MPPT: 13.5A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP65
Maximum efficiency: 98.4%
10 year warranty

Inversor monofásico híbrido nueva generación, 2 MPPT
Eficiencia 97.5%,1-phase, 2 MPPT, Opcional Ethernet and/or 4G via different Dongles, Conector DC Stäubli MC4, Caja de protección IP65, Baterías compatibles LG Chem Resu HV / Huawei LUNA 2000, Dimensiones 36,5 x 36,5 x 14 cm, Peso 12.6kg, Garantía de producto 10 años.

Huawei 3KTL-L1

Smart Dongle - WLAN Included
Maximum input voltage: 600V
Maximum intensity by MPPT: 12.5A
Anti-islanding / reverse polarity protection DC / temperature / AC overcurrent, short circuit and overvoltage
Maximum efficiency:98.3%
Protection: IP65
10 year warranty

Huawei 2KTL-L1 (2MPPT)

Smart Dongle - WLAN Included
Maximum input voltage: 600V
Maximum intensity by MPPT: 12.5A
Anti-islanding / reverse polarity protection DC / temperature / AC overcurrent, short circuit and overvoltage
Protection: IP65
10 year warranty

Huawei BMS (LUNA2000-5KW-C0 - DC/DC Module)
Advanced management system that is responsible for monitoring and controlling the batteries of the power module

Huawei 6KTL-L1

Smart Dongle - WLAN Included
Maximum input voltage: 600V
Maximum intensity by MPPT: 12.5A
Anti-islanding / reverse polarity protection DC / temperature / AC overcurrent, short circuit and overvoltage
Maximum efficiency:98.4%
Protection: IP65
10 year warranty

The TCC-CAN control module for Cegasa's eBick Ultra 175 modular battery.
The BMS, through CAN communication, allows sending the most relevant battery data such as SOC, temperature, alarms, current and voltage both in charge and discharge, among others. In addition, with the eViewer App, via Bluetooth connection, it allows to visualize the module parameters such as battery SOC, cycles and bus voltage, among others.

Equipos para monitorización y control de hasta 5 dispositivos SMA
Dispositivo de monitorización y control de inversores SMA en plantas fotovoltaicas descentralizadas hasta 30kVA con red Speedwire. Montaje en pared o riel de perfil de sombrero. Soporta max. 5 inversores (1 de ellos inversor de batería), sistemas de E / S o contador a través de Modbus / TCP o Modbus / RTU.

Solis-RAI-3K-48ES-5G-DC

Inverter - bidirectional charger
Rated output power: 3kw
Mains rated voltage: 220V/230V
Maximum output current: 20A
Anti-return protection of the battery / short circuit / temperature and output overcurrent

Batería de alto voltaje
10 años de garantía

Amplía tu sistema simplemente añadiendo baterías adicionales.

Huawei BATERÍA 5kWh

Maximum power output. 2.5kw
Rated voltage (single phase system): 360V
Rated voltage (single phase system): 600V
Cell Technology: Lithium-Ferrophosphate(LiFePO4)
Protection: IP66
10 year warranty
