Features:

Indirect measurement wattmeter, installation without the need to modify the customer's installation.
DIN35 rail mounting
LCD display for real time display of measurements
10m RS485 cable with Solis inverter connector included as standard.
Ability to use other toroidals with secondary at 5 amps simply by setting the transformation ratio

Solis 5G 110kW 3Ph Inverter, 10 MPPT

10 MPPT, 98.7% maximum efficiency
> 150% DC/AC ratio
High power tracking density 90 MPPT/MW
Compatible with bifacial modules
Maximum input voltage 1100 V
Communication:RS485, Optional: Wi-Fi, GPRS, PLC

Solis-255K-EHV-5G

14 MPPT
Nº strings máx. 28
Max imput voltgje 1500V
Voltaje de arranque 500V
98% Eficiencia máxima
Pantalla LCD
Comunicación RS485

Solis Hybrid S6-EH3P10K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66

P nominal : 50000 W 6 MPP, sin display.Webconnect incluido. IP65.

Inteligente:
- Monitorización a nivel de string
Eficiente:
- Eficiencia máxima 98.7%
Seguro:
- Diseño sin fusibles
Confiable:
- Descargadores de sobretensión tipo II de CC y CA
Tensión de entrada máx. 1100
Corriente máxima de entrada 120
Nº seguidores MPP 4
Modelo sin transformador, w/o display
Eficiencia europea 98.0000
L*An*Al (mm) 530 * 640 * 270
Potencia nominal AC 50.0000
Potencia máxima AC 55.0000
Eficiencia máxima 98.5000
rango MPP 200 - 1000
Número máx. series: 8
protección IP66
Peso (kg): 49.00

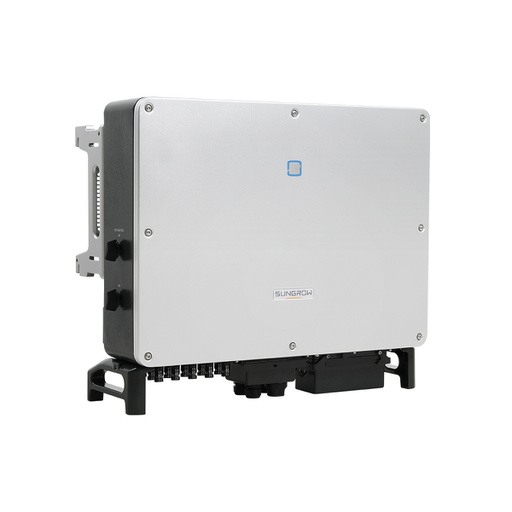

Inversor string trifásico
Fabricante: Sungrow, 5 años de garantía limitada
Alto rendimiento:
- 12 MPPTs con una eficiencia máxima del 99%
- 20A por string, compatible con potencias de módulos superiores a 500Wp
- Intercambio de datos con el tracker para mejorar el rendimiento
Seguridad comprobada
- 2 strings por MPPT, sin riesgo de conexión inversa
- Monitorización AC y DC en tiempo real
- Interruptor DC integrado, corta automáticamente el fallo
Menor inversión:
- Función Q durante la noche
- Comunicación PLC
- Diagnóstico de la curva IV inteligente, O&M activo

High efficiency:
- 12 MPPTs with max. efficiency 98.5%.
- Compatible with bifacial modules
- Integrated anti-PID and PID recovery function

Smart O&M:
- Contactless start-up and remote firmware update
- Online curve IV* analysis and diagnostics
- Fuse-free design with intelligent current monitoring per string

Safety tested
- IP66 and C5 anti-corrosion protection
- SPD DC Type II and AC Type I + II protection
- Complies with network and global safety codes

12kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 years

Inversor de string
Fabricante: Sungrow, 5 años de garantía limitada
Potencia pico máxima 70.0000
Tensión de entrada máx. 1100
Corriente máxima de entrada 160V/200V
Nº seguidores MPP 4
Nº entradas DC 8
Modelo sin transformador, w/o display
Eficiencia europea 98.3000
L*An*Al (mm) 645 * 782 * 310
Potencia nominal AC 50.0000
Potencia máxima AC 55.0000
Eficiencia máxima 98.7000
protección IP66
Peso (kg): 41.00

Huawei 15KTL-M5

Maximum input voltage: 1100V
Maximum input current: 40A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP66
Maximum efficiency: 98.4%
10 year warranty

Compact equipment for decentralized systems and large-scale photovoltaic systems due to its high power density.

“Active cooling” with speed-controlled fans ensure optimal
optimal cooling with lower energy consumption, maximizes production
due to temperature reduction


Max power PV generator: 225000W
Max input voltage 1500V
Max input current/Max short circuit current: 180 A/325 A
Number of MPP followers: 1
Certificate for Spain and Portugal
5 year warranty

Compact equipment for decentralized systems and large-scale photovoltaic systems due to its high power density.

“Active cooling” with speed-controlled fans ensure optimal
optimal cooling with lower energy consumption, maximizes production
due to temperature reduction

Max power of PV generator: 360 kWp
Max input voltage 1500V
Max input current/Max short circuit current: 180 A/325 A
Number of MPP followers: 1
Certificate for Spain and Portugal
5 year warranty

15kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 years

20kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 years

Solis Hybrid S6-EH3P6K-H (meter included)

3 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66

Solis Hybrid S6-EH3P8K-H (meter included)

4 MPPT three-phase hybrid inverter
Maximum input voltage: 1000V
Maximum input current: 16 A / 16 A
Maximum efficiency: 98%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP66

Power Meter, DTSU666-HW/YDS60-80
Direct reading up to 80A
Supports indirect reading with CT x/5A (not included)

Huawei SUN2000 25KTL-M5
Maximum input voltage: 1100V
Maximum input current: 40A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP66
Maximum efficiency: 98.4%
10 year warranty

Huawei SUN2000-12KTL-M5

Maximum input voltage: 1100V
Maximum input current: 40A
DC reverse polarity / AC overcurrent / short circuit protection, anti-islanding
Protection: IP66
Maximum efficiency: 98.4%
10 year warranty
