Solis-1P-Meter-CT*1

Indirect measurement single-phase wattmeter
Open-core toroids included with measurement capacity per phase of up to 150A and 5 meters of cable
LCD screen for real-time display of measurements
Includes 10m RS485 cable with connector for Solis inverters as standard
DIN35 rail mounting

Solis-1P-Meter

Direct measurement single-phase wattmeter
Communication with the inverter via RS485
DIN rail 35
8-bit LCD display
Measuring range (A) : 10(60A)

Solis Híbrido S5-EH1P5K-L (medidor incluido)

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

Solis Híbrido S5-EH1P4.6K-L (medidor incluido)

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

Solis Híbrido RHI-3.6K-48ES-DC (medidor incluido)

2 MPPT Hybrid Single Phase Inverter
Maximum input voltage: 600 V
Maximum input current: 11 A / 11 A
Maximum efficiency: 97.5%
DC reverse polarity protection / output over current / short circuit and over voltage
Protection level: IP65
5 year warranty extendable up to 20 years

2 MPPT single-phase hybrid inverter
Maximum input voltage: 600 V
Maximum input current: 15 A / 15 A
Maximum efficiency: 96.5%.
DC reverse polarity / output overcurrent / short circuit and overvoltage protection
Protection level: IP65
Warranty: 5 years extendable up to 20 years

Solis S6 GR1P3K (3 kW - 2 MPPT)

2 MPPT non-hybrid single-phase inverter
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / overvoltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

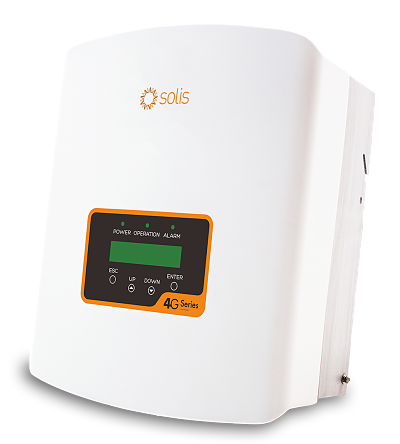

Solis S5-GR1P1.5K-M (1,5 kW)

Maximum input voltage: 600 V
Maximum input current: 12.5 A
Number of MPPTs/Number of entries: 1/1
97.3% maximum efficiency
Integrated AFCI (DC Arc Fault Circuit Protection)
5 year warranty extendable to 20 years

Solis S6-GR1P5K-DC (5kW - 2 MPPT)

2 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis S6-GR1P3K-M-DC-Meter (3 kW - 1 MPPT)

1 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis S6-GR1P6K-DC-Meter (6 kW - 2 MPPT)

2 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis S6-GR1P4K-DC (4kW - 2MPPT)

2 MPPT non-hybrid single-phase inverter
Parallelizable up to 10 units
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / over voltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)

Solis S6-GR1P0.7K-M (700 W)

1 MPPT non-hybrid single-phase inverter
Max input current: 14A
Max input voltage: 600V
DC reverse polarity / short circuit / overvoltage / anti-islanding and temperature protection
It has an LCD screen for configuration and display of data in real time
5-year warranty (extendable up to 20 years)
